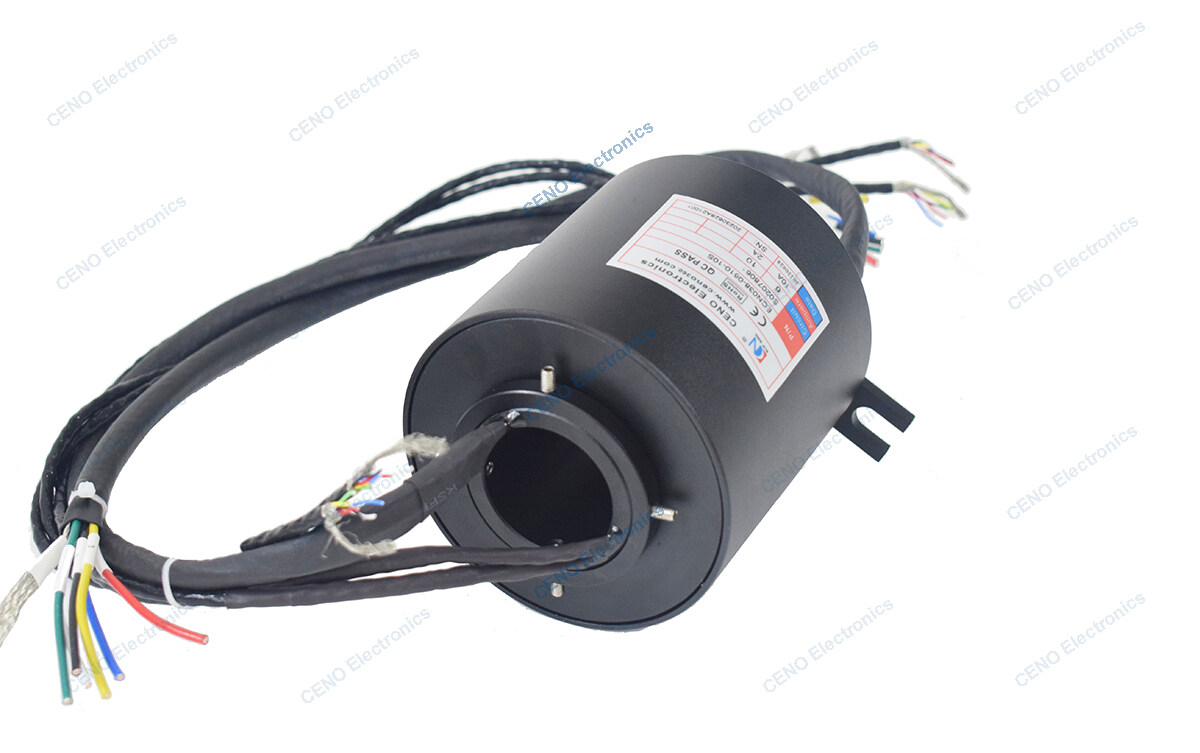

Servo Motor Signal Slip Ring

• Current & Circuits: 6circuis*10A; 10circuits*2A(servo motor signal)
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC ≥100MΩ@300VDC
• Contact resistance: ≤70mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Working temperature: -20°C~+60°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~300rpm
• Lead wire size: AWG14# Wire Teflon® UL 4/6 cores twisted shielded wire (0.14mm²)
• Lead wire length: Rotor : 500mm; Stator : 500mm

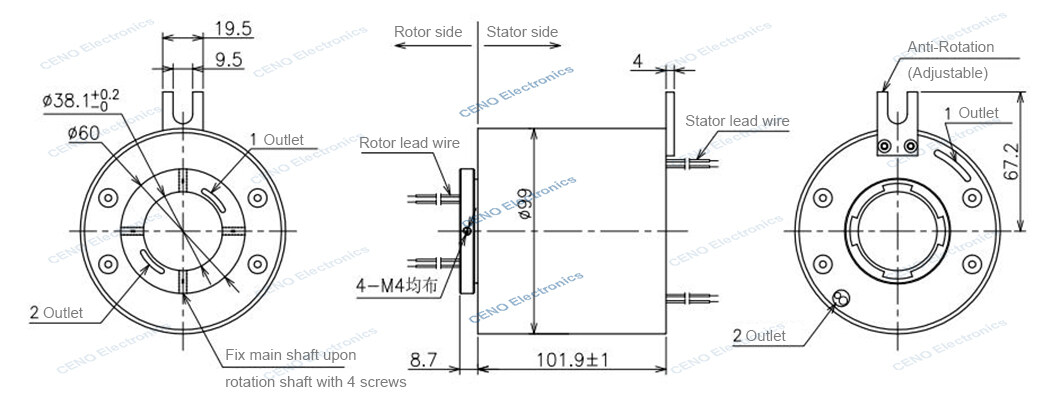

• Inner Diameter: Ø38.1mm
• External diameter: Ø99mm
• Installation: Rotor side fixed upon guest main shaft with screws

ECN038-06P2-10S is CENO new designed product Servo Motor Signal Slip Ring which is a customized slip ring for the automatic system. In CENO all of the Servo Motor Signal Slip Rings are customized and take the hollow shaft slip ring as the center, it features several control signals are integrated in the servo motor, and through hole slip ring has the characteristics of mature technology and long service life. Servo motors are indispensable components in the automation industry, through hole slip ring as an electro- mechanical component that can transmit power, signals and gas – liquid in infinite rotation, are well matched with servo motors. More information please contact us.
