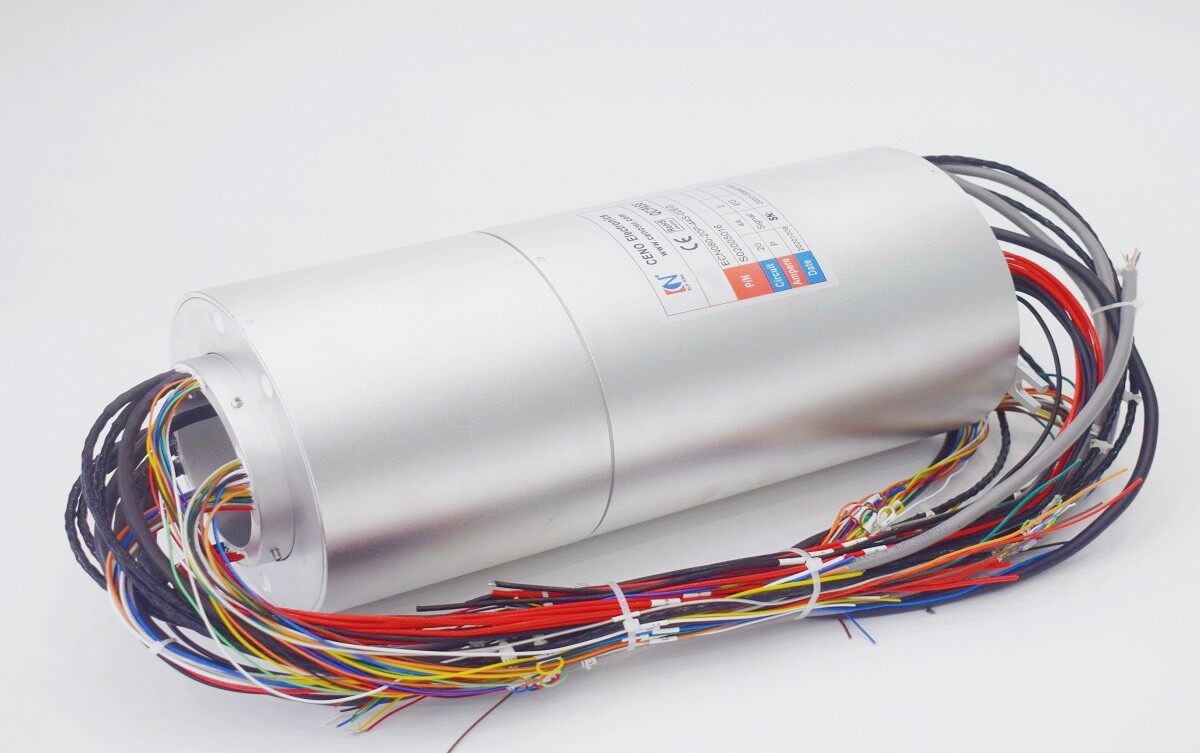

Servo-motor Slip Rings

• Circuits & Current: 2*64A,10*10A,8*4A,16*switch signal, 4*Can,2*Servo motor, 2*1000M Ethernet
• Voltage: 0~380VAC / 24VDC
• Electrical noise: Max 30mΩ (50rpm)
• Dielectric strength: ≥1000V@50Hz (power) ≥300V@50Hz (signal)
• Insulation resistance:≥500MΩ@300VDC (power) ≥100MΩ@300VDC (signal)
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP51

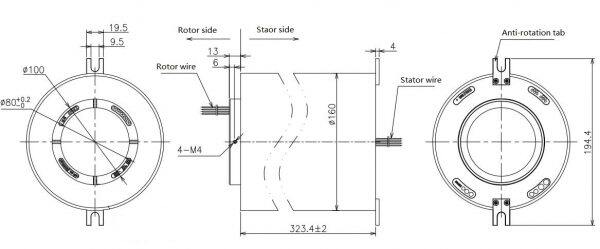

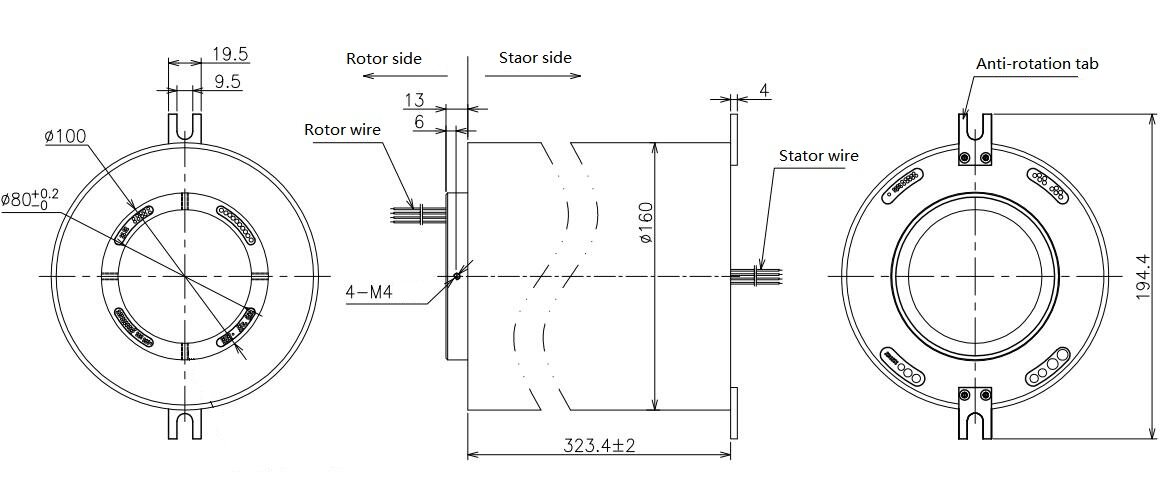

• Through hole size: 80 mm

It’s a multi-channel slip ring with through bore 80mm, integrate power, switch signal, Can-bus, Servo-motor and 2 groups of Gigabit Ethernet, totally 45 channels. CENO can design such kind of multil-channel slip rings and make sure high reliability performance. Typical application including automatic winding machine, lithium battery equipment, industrial automation equipment. CENO will provide the best solution according to different demands, please contact us.
