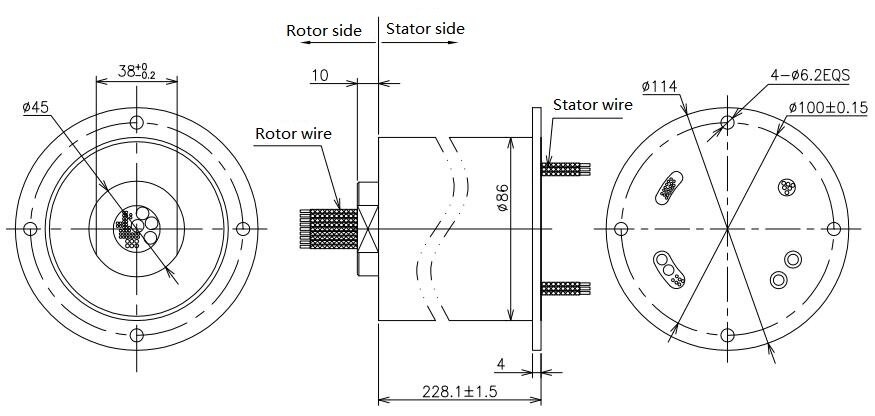

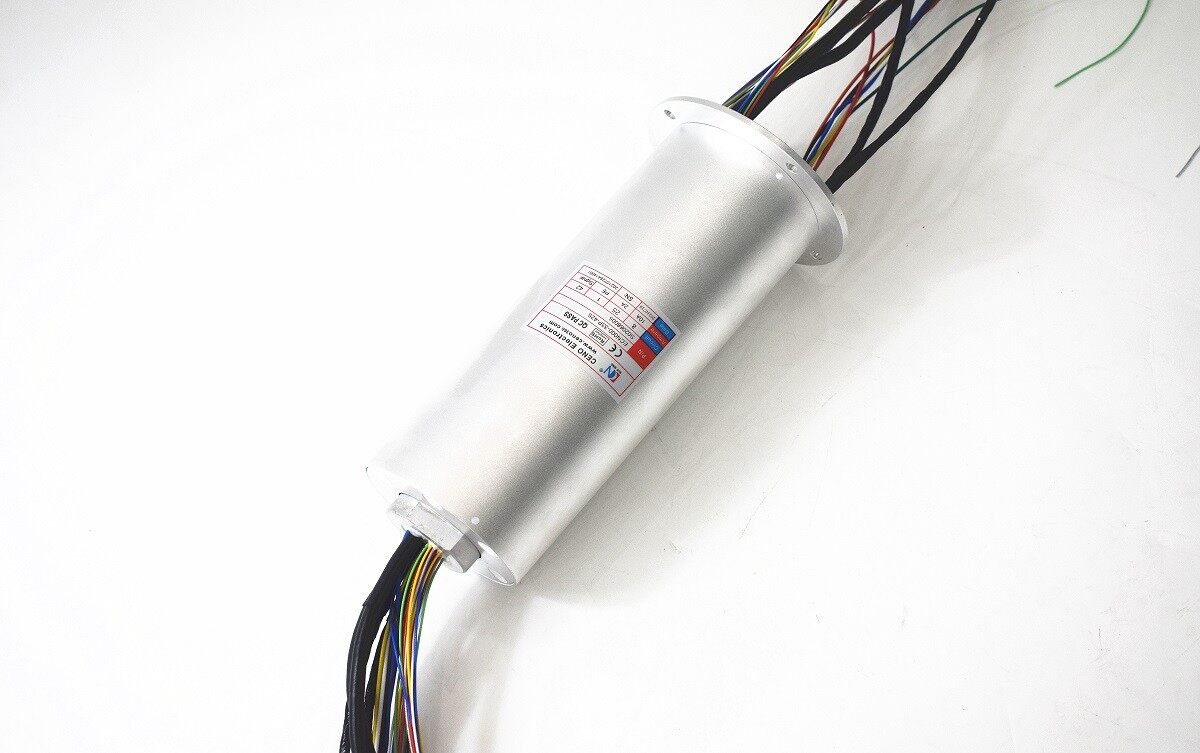

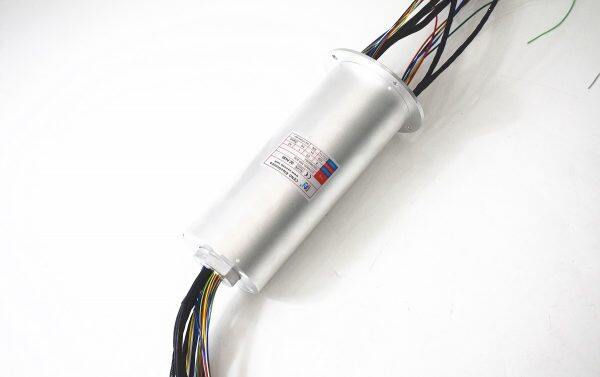

Servo motor Slip Rings

• Circuits & Current: 8*10A,25*2A,26*signal,16*servo motor
• Voltage: 0~380VAC/VDC
• Electrical noiseMax : 30mΩ (50rpm)
• Dielectric strength: ≥1500V@50Hz (power) ≥300V@50Hz (signal)
• Insulation resistance: ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal)
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP54
• Through hole size: Solid through bore

In the industry automation processing, especially in servo systems and factory room net works, it need transmission more signals, data, Ethernet to control the motion of the machinery. We use special design technology, precious metal contacts to make sure the high quality transmission of the data, power, Also can use equipment testing the Ethernet, return loose, insert loose etc performance. To make the production in process more easy and correct. CENO can provide different customized solution according to customer’s requirements, Please feel free to contact us anytime.
