Servo motor Slip Rings

• Circuits & Current: 4*10A; 25*2A;13*signal; 8*servo motor
• Voltage: 0~380VAC/VDC
• Electrical noise: Max 30mΩ (50rpm)
• Dielectric strength: ≥1000V@50Hz (power); ≥300V@50Hz (signal)
• Insulation resistance: ≥500MΩ@500VDC (power);≥100MΩ@100VDC (signal)
• Operating speed: 0-100 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP54
• Through hole size: Solid through bore

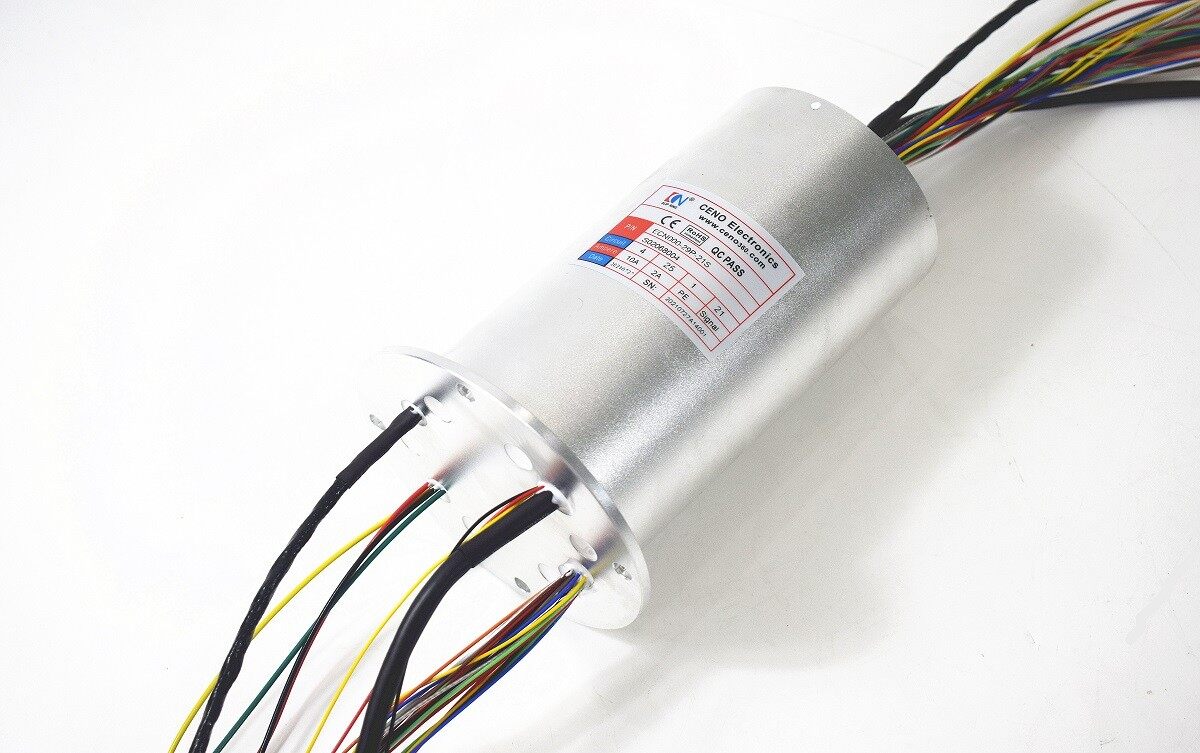

Such slip rings are designed especially for servo motor signal transmission, usually with the characteristics of precious metal contact, aluminum alloy housing,protection level can up to IP68. It has a long service life up to 10 million turns and customizable wire length. Furthermore, it is water-proof, pressure-proof, vibration resistant and of good reliability and quality. ECN000-29P-21S with solid bore and integrated power, signal in one slip ring. The inner bore size can be customized from 0mm to 980mm, any special requirements please contact with CENO team, we will provide the best solution for you.
