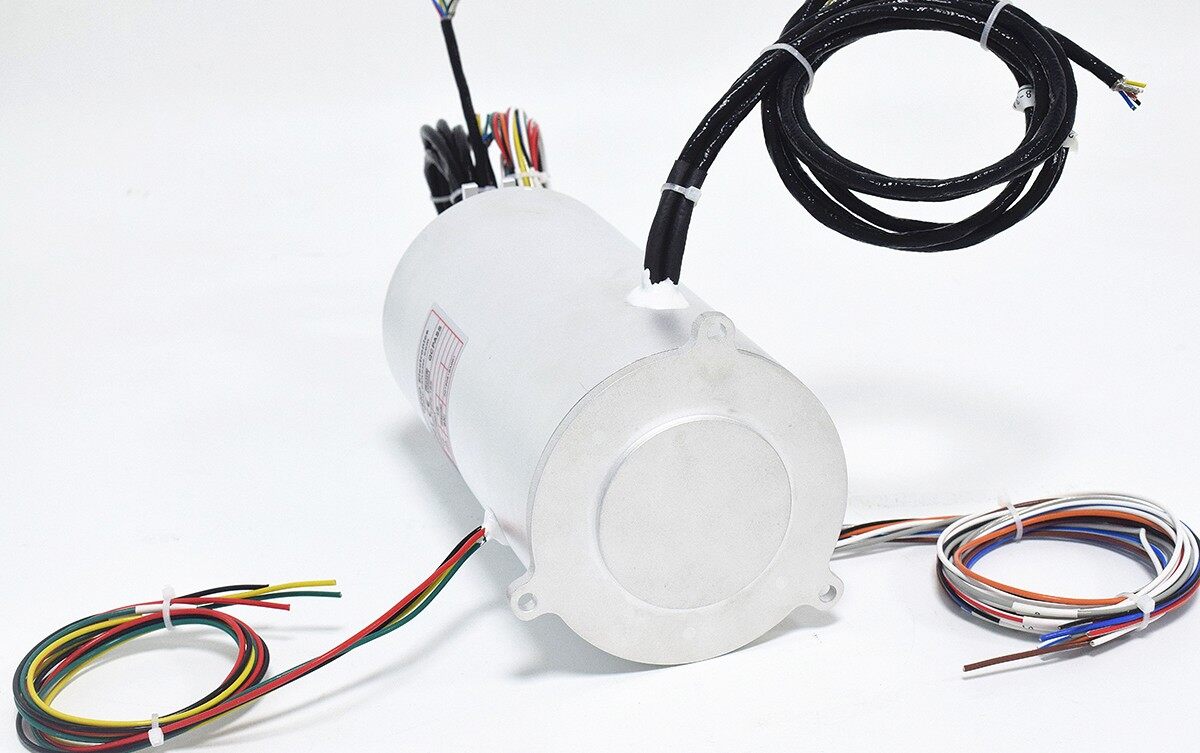

Servo-motor Slip Rings

• Circuits&Current: 12*10A; 18*signal
• Rating voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥1000VAC@50Hz(Power) ≥500VAC@50Hz (Signal)
• Insulation resistance: 500MΩ@500VDC(Power) 100MΩ@100VDC(Signal)
• Working temperature: -20℃~+60℃
• Protection grade: IP54
• Working speed: 0~300rpm
• Contact material: Precious metal

Motor encoder slip ring mainly used for servo motor power supply and transmission of encoder signal, its advantage is the special inner wiring and shielding design to avoid encoder errors, loss rate <0.02%, it can combine with other switch signal or power channels, suitable for encoder and other automatic control system design.
