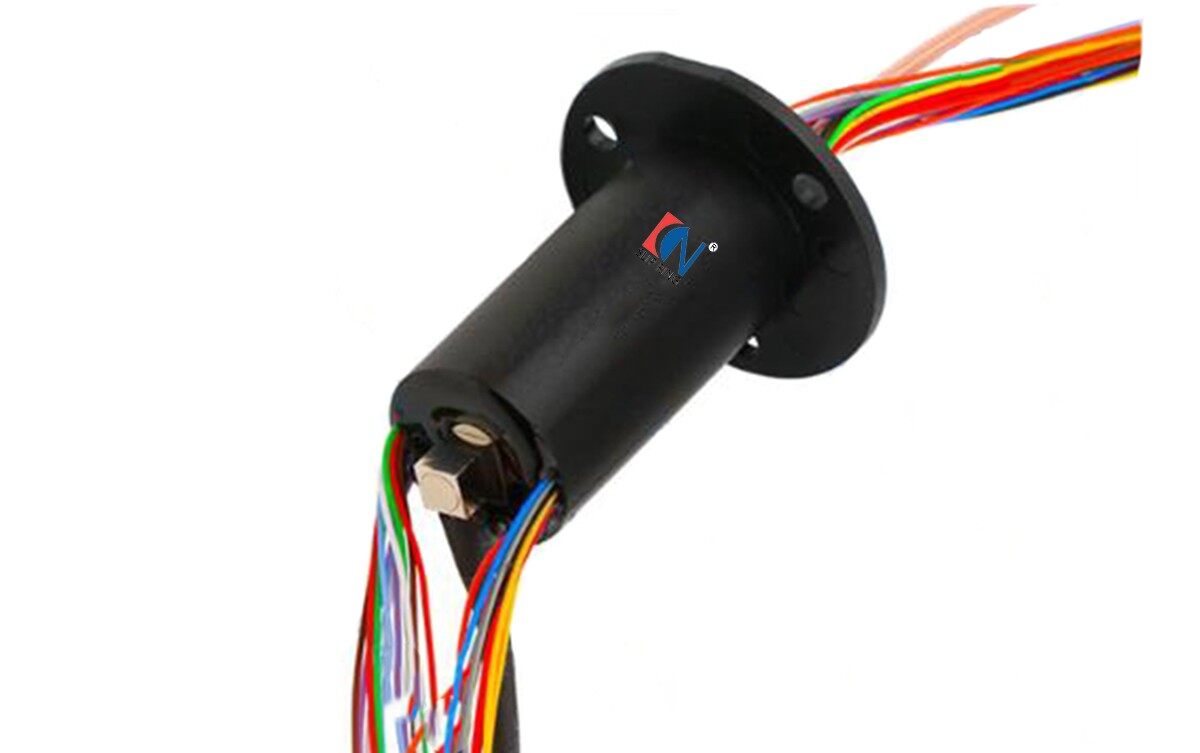

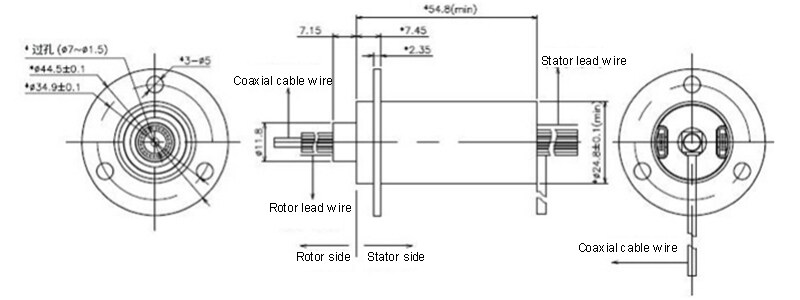

Signal + RF Integrate Slip Rings

• Current: 24*signal; 4*RF signal
• Rating voltage: 0~110V AC/DC
• Electrical noise: ≤35mΩ
• Dielectric strength: ≥200VAC@50Hz
• Insulation resistance: 50MΩ@200VDC
• Working temperature: -20℃~+60℃
• Working speed: 0~10rpm
• Contact material: Precious metal

RF Parameter

• Frequency range: 950-1300MHz
• Insertion loss: <5.5dB
• Connector type: SMA-J / SMA-J
• VSWR: <2.0

RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission, CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.
