Therm Couple Slip Ring

• Current & Circuits: 2circuits*5A, 2circuits*K Therm couple
• Rating Voltage: 0~220 VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC;≥300MΩ@100VDC
• Electrical noise: ≤70mΩ (50rpm)
• Operating speed: 0~100rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -20°C~+150°C
• Working humidity: 60%
• IP protection grade: IP51

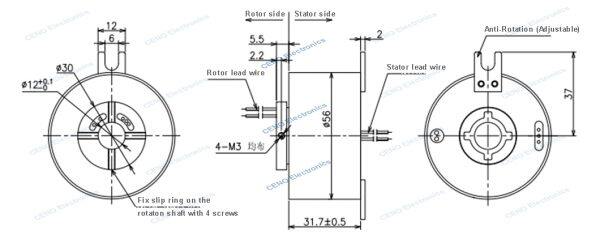

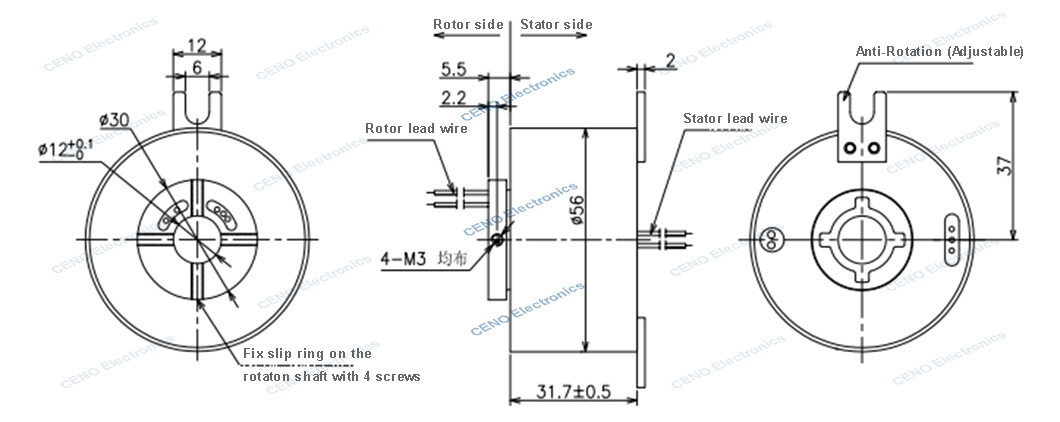

• Through hole size: Ø12mm
• Lead wire length: Rotor : 300mm; Stator : 300mm
• Installation: Rotor side fixed on the main shaft with screws

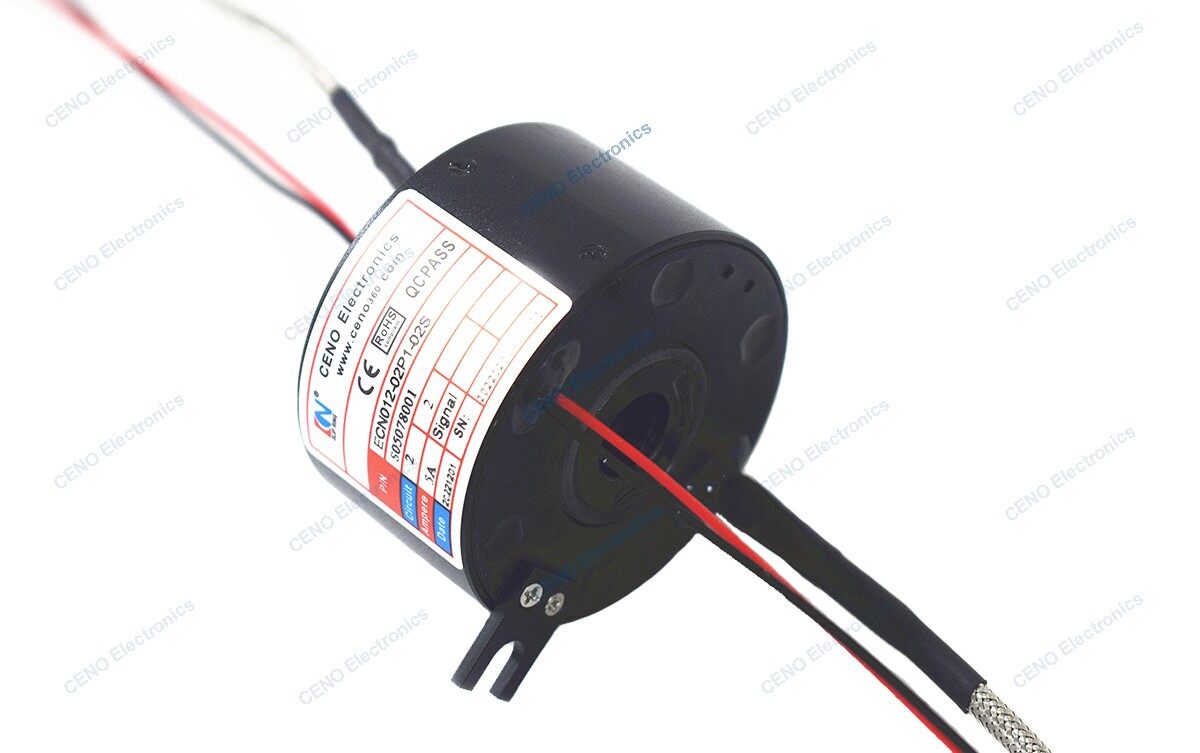

ECN012-02P1-02S is a K-type Therm couple signal slip ring with hollow shaft from CENO Electronics, there are 2 circuits for 5A and 2 circuits for K Therm couple signals. We can provide different solution according to customer’s requirements, inner bore size can be choose from 3mm to 980mm, wide temperature measurement range from -270℃ to +2800℃, high measurement precision and thermal couple type is optional. Mainly applied on chip mounter, automation machinery and agitator in chemical engineering.
