Thermo-couple-Slip-Ring

• Current & Circuits: 10 group * K type Thermo couple signal
• Rating Voltage: 0~220 VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Electrical Noise: 30mΩ (50rpm)
• Contact material: Precious Metal
• Housing material: Stainless steel + Aluminum Alloy
• Working temperature: -20°C~+80°C
• Working humidity: 60 %RH
• IP protection grade: IP54
• Operating speed: 0~10rpm

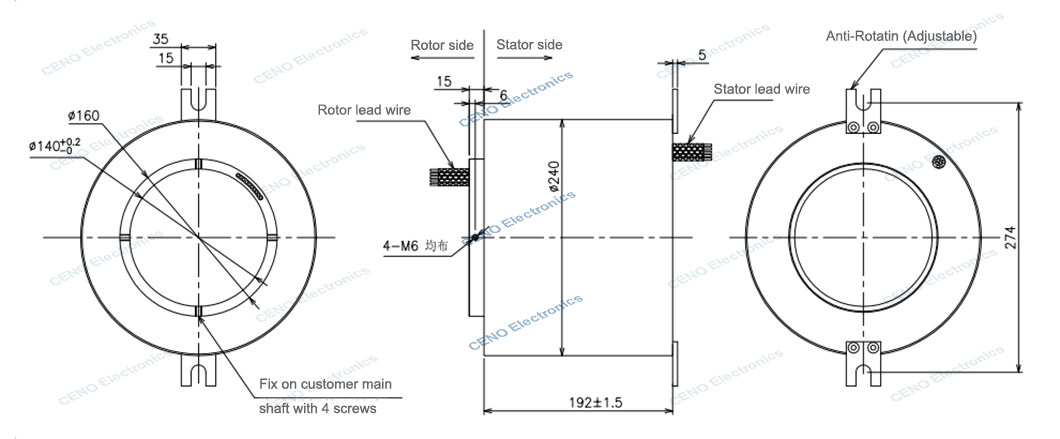

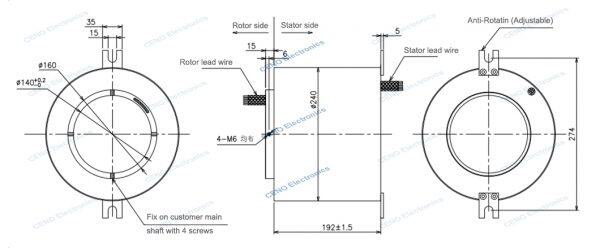

• Inner diameter: Ø140mm
• Lead wire size: K type Thermo couple wire
• Lead wire length: Rotor: 300mm; Stator: 5000mm

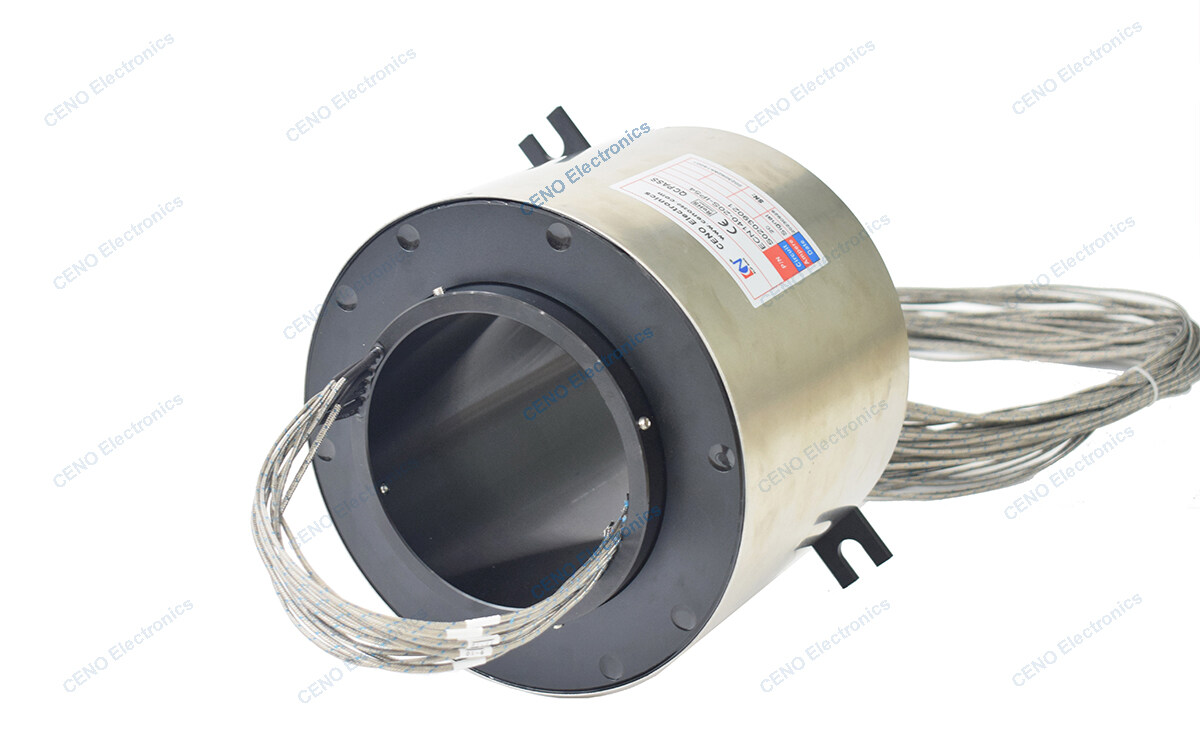

ECN140-20S-IP54 is a K type Thermo couple signal slip ring which is a customized slip ring too. In order to meet the requirement of equipment continuous rotating transmission of thermo couple signals, CENO design and develop a type of high precision slip ring to use and transmit thermo couple signals. Which have been successfully used in rotary furnace equipment, coating machine, heating shaft equipment, welding equipment and automatic turntables, etc. More information please contact us.
