Thermo-couple Slip Rings

• Circuits & Current: 4*15A,2 groups*K thermocouple
• Voltage: 380VAC
• Electrical noiseMax: 30mΩ (50rpm)
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz
• Insulation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Operating speed: 0-300 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP54

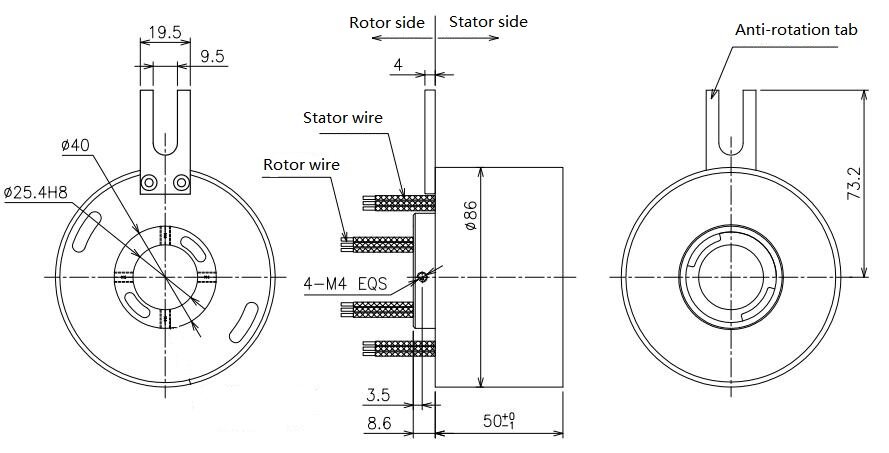

• Through hole size: 25.4 mm

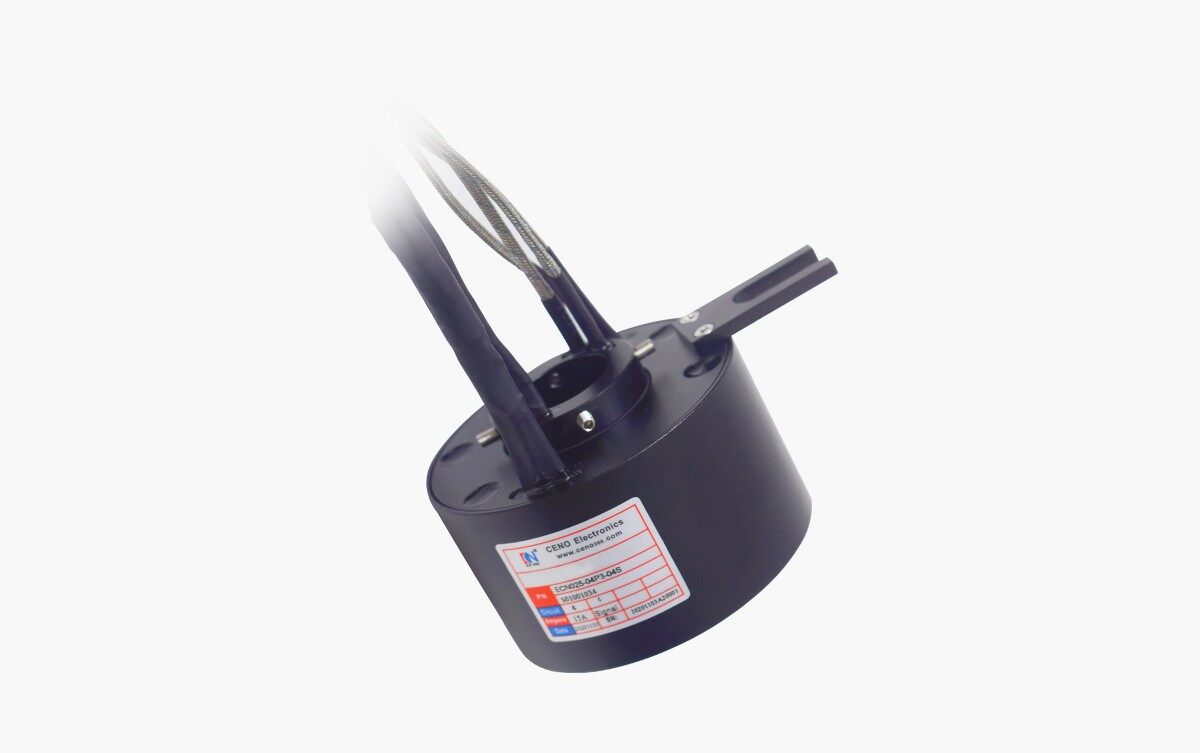

This is a K type thermocouple slip ring with 25mm through bore, It’s also integrate 4*15A power. CENO thermocouple slip ring is usually to be applied on chip mounter, automation machinery and agitator in chemical engineering. It has features with simple assembly, easy replacement, wide temperature measurement range from -270℃ to +2800℃, high measurement precision and thermocouple type is optional.
