Thermo Couple Slip Rings

• Circuits &Current: 10*5A, 14*signal
• Voltage: 380VAC/24VDC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥1000VAC@50Hz(power） ≥300VAC@50Hz(signal）
• Insulation resistance: ≥500MΩ@100VDC(power) ; ≥100MΩ@100VDC(signal)
• Operating speed: 0-100 rpm
• Contact material: Precious metals
• Operating temperature: -20~+60℃
• Through bore size: 180mm
• IP protection grade: IP54

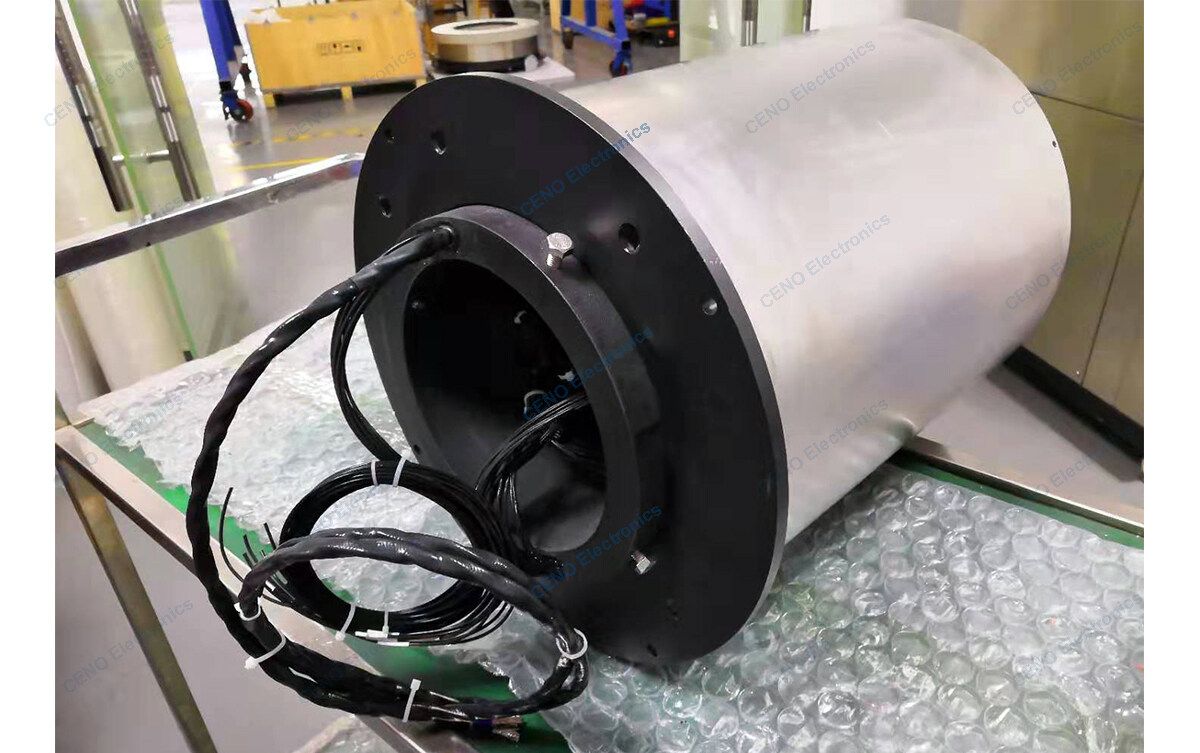

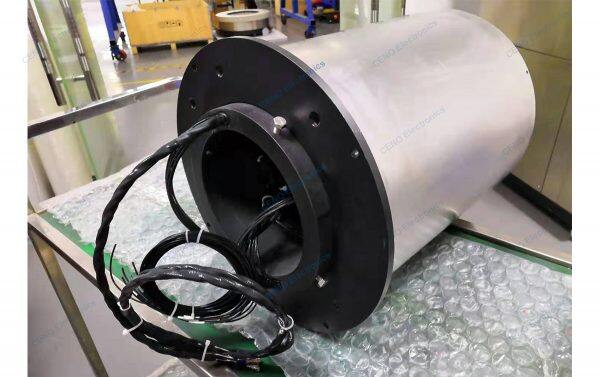

High temperature thermocouple signal slip ring, It can be used for 360 degree rotating transmission of current and thermocouple signal in high temperature environment. It can work stably in 100-250 degree high temperature environment for a long time. It is mainly used in hot roller, heating device and other high temperature environment.
