Thermocouple Slip Rings

• Circuits & Current: 4*20A,1*K-type thermocouple signal
• Voltage: 380VAC
• Electrical noise: ≤70mΩ(50rpm)
• Dielectric strength: ≥1000V@50Hz (signal)
• Insulation resistance: ≥1000MΩ@500VDC(signal)
• Operating speed: 0-300 rpm
• Contact material: precious metals
• Operating temperature: -20~+60℃
• Through bore size: 50mm
• IP protection grade: IP54

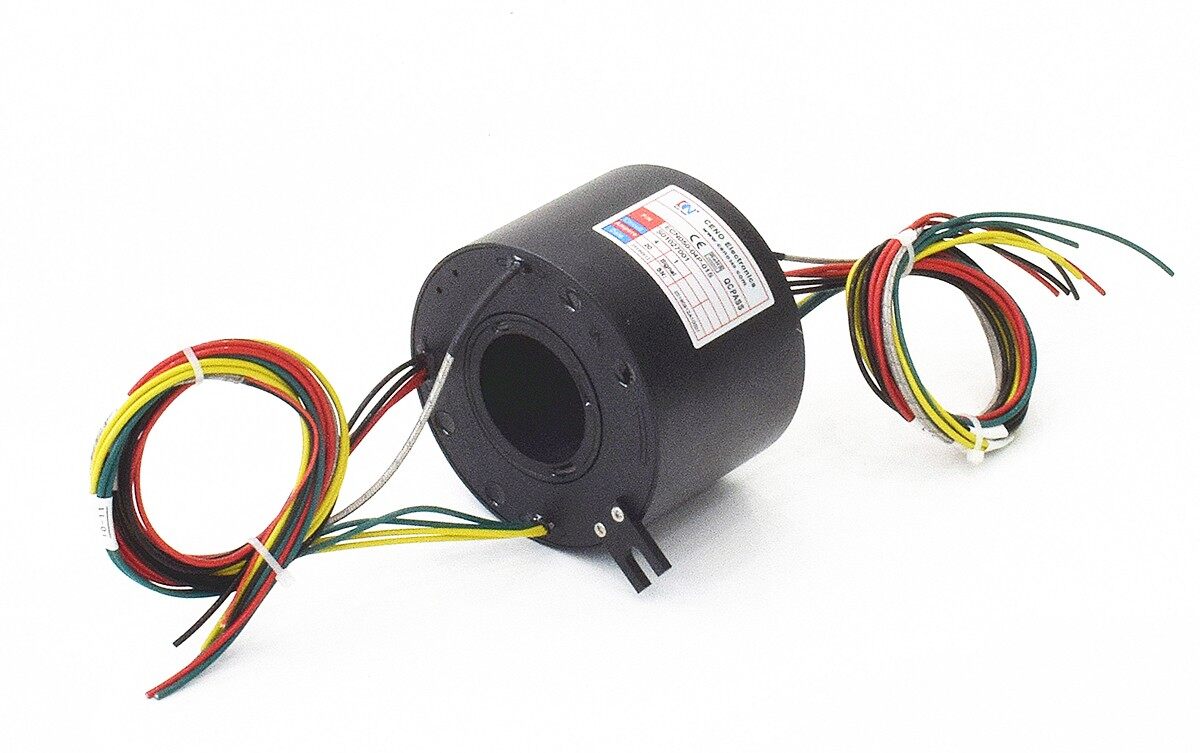

This is thermocouple signal slip ring, through hole size is 50 mm, it transmits 20A current and one group K-type thermocouple signal, working speed 300rpm, inside contact material precious metals, housing material is aluminum alloy, It has features with simple assembly, easy replacement, wide temperature measurement range from -270℃ to +2800℃, high measurement precision and thermalcouple type is optional.
