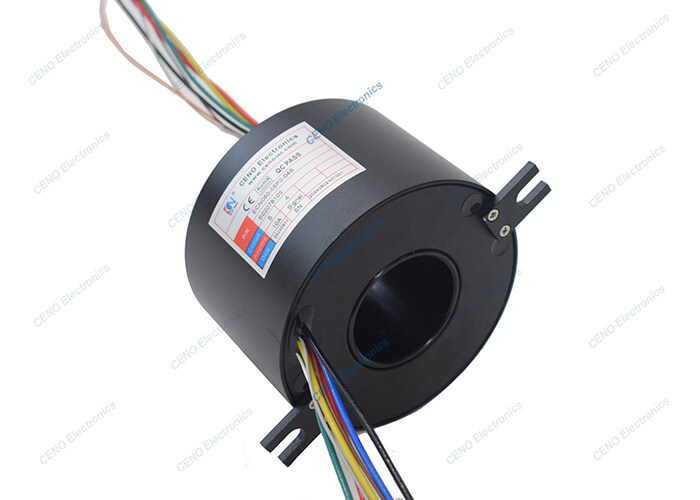

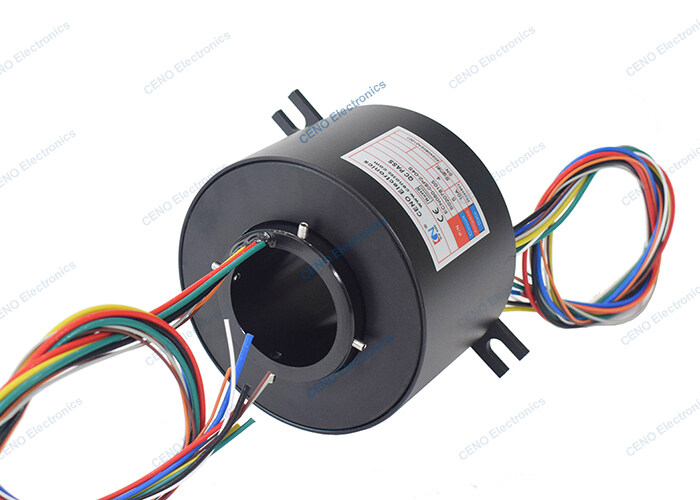

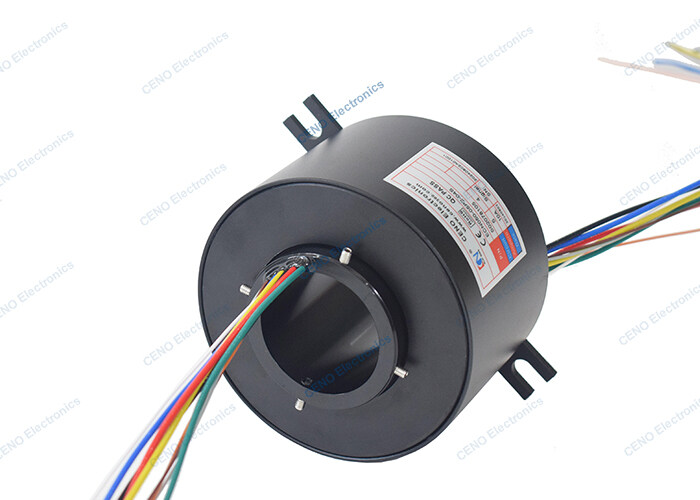

Through Bore Slip Ring

• Circuits & Current: 5 circuits*10A; 4 circuits*Signal
• Rating Voltage: 0~380VAC/VDC
• Dielectric strength: ≥1500VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
• Electrical Noise: Max 30mΩ (50rpm)
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP65
• Working Speed: 0~100 rpm
• Inner Diameter: Ø50mm
• Outer Diameter: Ø119mm
• Contact Material: Precious Metal
• Housing Material: Aluminum alloy
• Lead wire size: AWG14# 22# Wire Teflon® UL
• Lead wire length: Rotor side: 500m; Stator side: 500m
• Installation: Anti-rotation tab installation

ECN050-05P2-04S is CENO through bore slip ring with ID50mm and IP65 for various industrial occasions. CENO have kinds of slip rings, through bore slip ring is the most cost-effective and best-selling series of industrial slip rings currently, mainly used in the situations which need continuous rotating and guarantee power and uninterrupted signals, such as radars, security equipment, VR simulation equipment, vehicle-mounted satellite antennas etc. For more information please contact us.
