Through Hole Slip Rings

• Circuits number: 6,12,18,24 or more
• Current rating: 5A,10A,15A,20A,25A,30A
• Inner bore size: 50 mm
• Voltage: 380VAC/VDC
• Electrical noise: 100 milliohms max
• Operating speed: 0-300 rpm or higher
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Working temperature: -20℃~+60℃

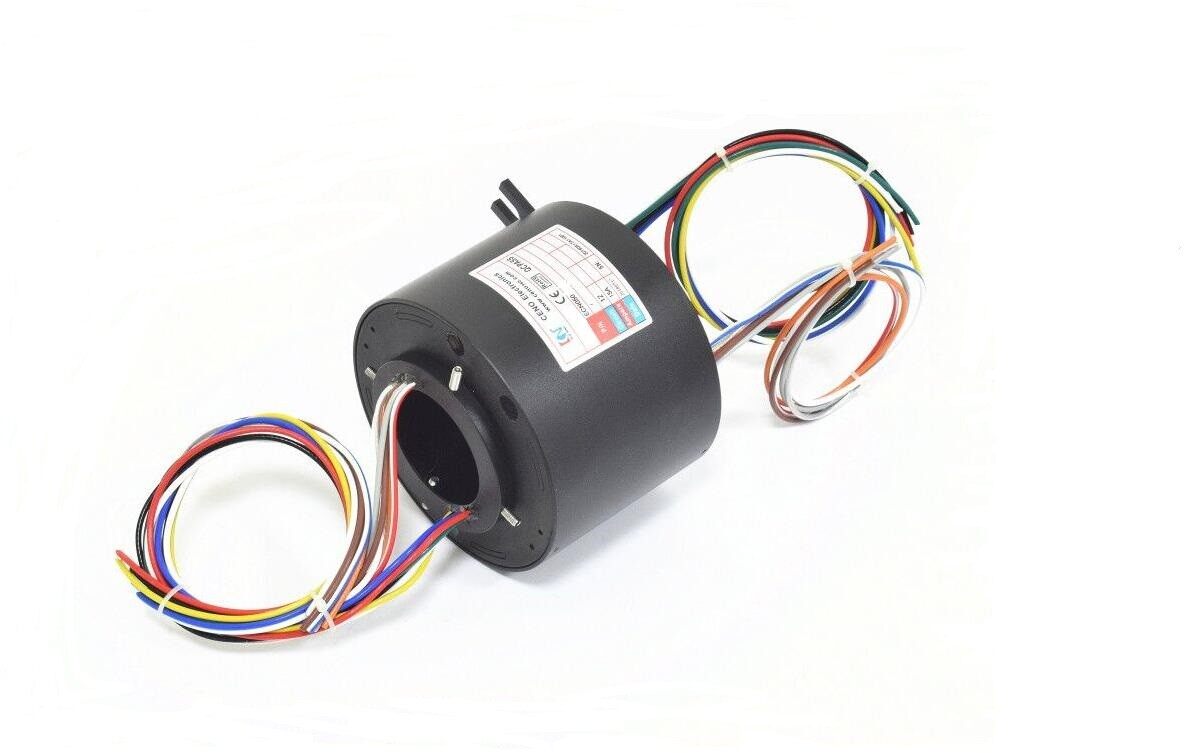

A slip ring is also called a rotary electrical joint,collector,commutator or swivel.ECN050 provides an economical,readily available solution when a compact through bore configuration is required.This unit provides 50mm through bore for routing hydraulic or pneumatic lines and a compact 119mm outside diameter for minimal space applications.Circuits number are available in 6,12,18 & 24 rings configurations in 4 housing lengths.
