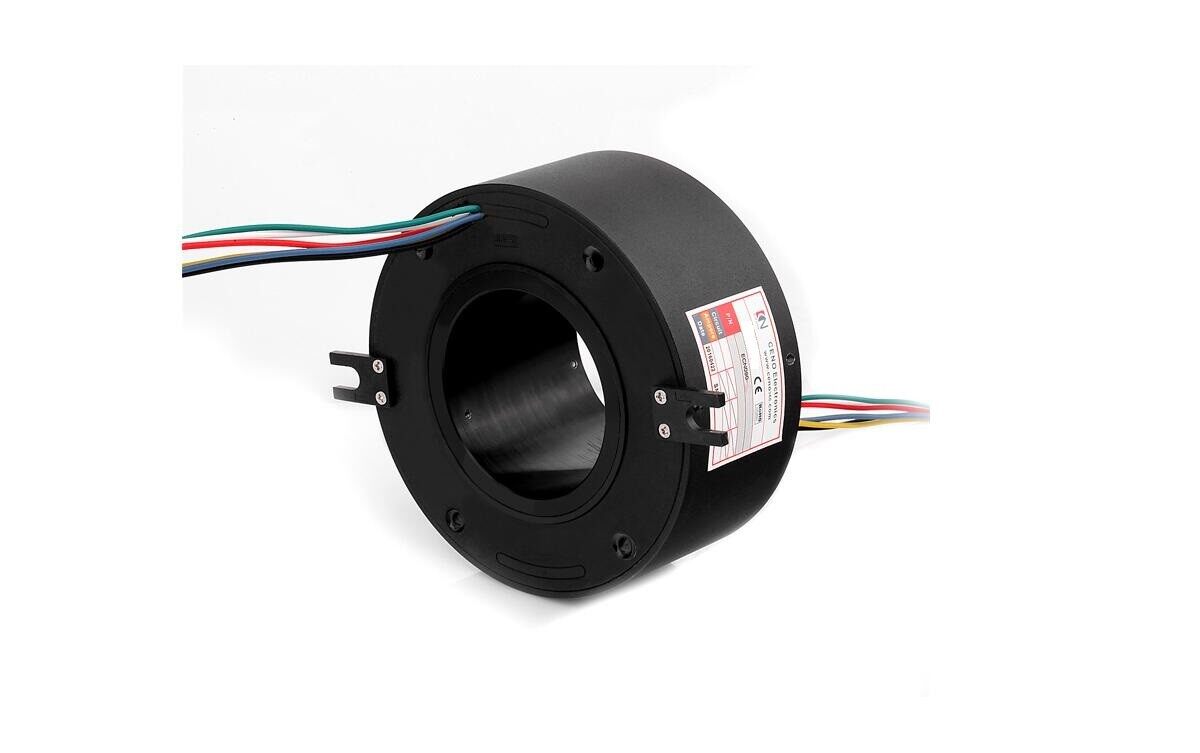

Through Hole Slip Rings

• Circuits number: 6,12,18,24 or more
• Current rating: 5A,10A,15A
• Inner bore size: 25.4mm
• Voltage: 380VAC/VDC
• Electrical noise: 100 milliohms max
• Operating speed: 0-300 rpm or higher
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Working temperature: -20℃~+60℃

This slip ring with standard inner bore size 25.4mm,CENO’s through hole slip ring hole size from 3mm to 980mm are optional,the center hole can pass through the drive shaft,gas-liquid passage.it’s can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.Various signal such as Ethernet,USB,HDMI,SDI, Canbus, Profibus and power are capable to be integrated into one slipring.
