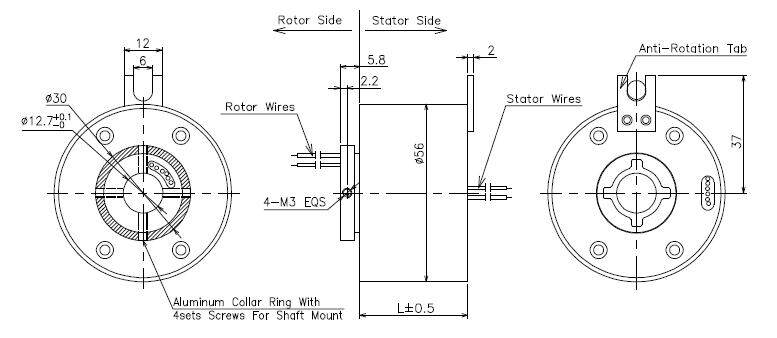

Through Hole Slip Rings

• Circuits number: 6,12,18,24 or more
• Current rating: 5A,10A
• Voltage: 380VAC/VDC
• Dielectric strength: ≥1000V@50Hz
• Insulation resistance: ≥1000MΩ@500VDC
• Electrical noise: 100 milliohms max
• Operating speed: 0-300 rpm or higher
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Working temperature: -20℃~+60℃

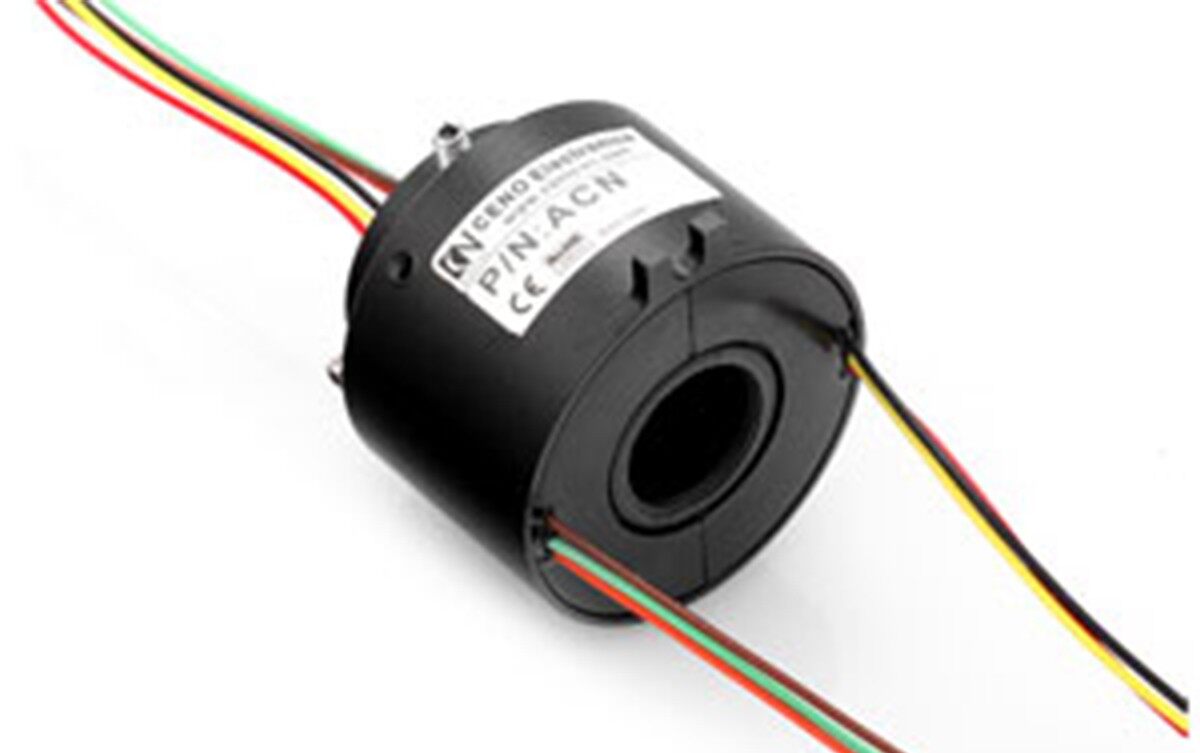

Through hole slip rings is also called as through bore slip ring, hollow shaft slip rings.CENO’s hollow shaft slip ring hole size from 3mm to 980mm are optional.Standard through hole size including 12.7mm ,25.4mm, 38.1mm,50mm,60mm,70mm,80mm,100mm and all other size are capable to be customized. Various signal such as Ethernet,USB,HDMI,SDI,Canbus,Profibus and power are capable to be integrated into one slipring.Mainly application such as semiconductor handling systems,process control equipment,heavy equipment turrets and cable reels etc,.
