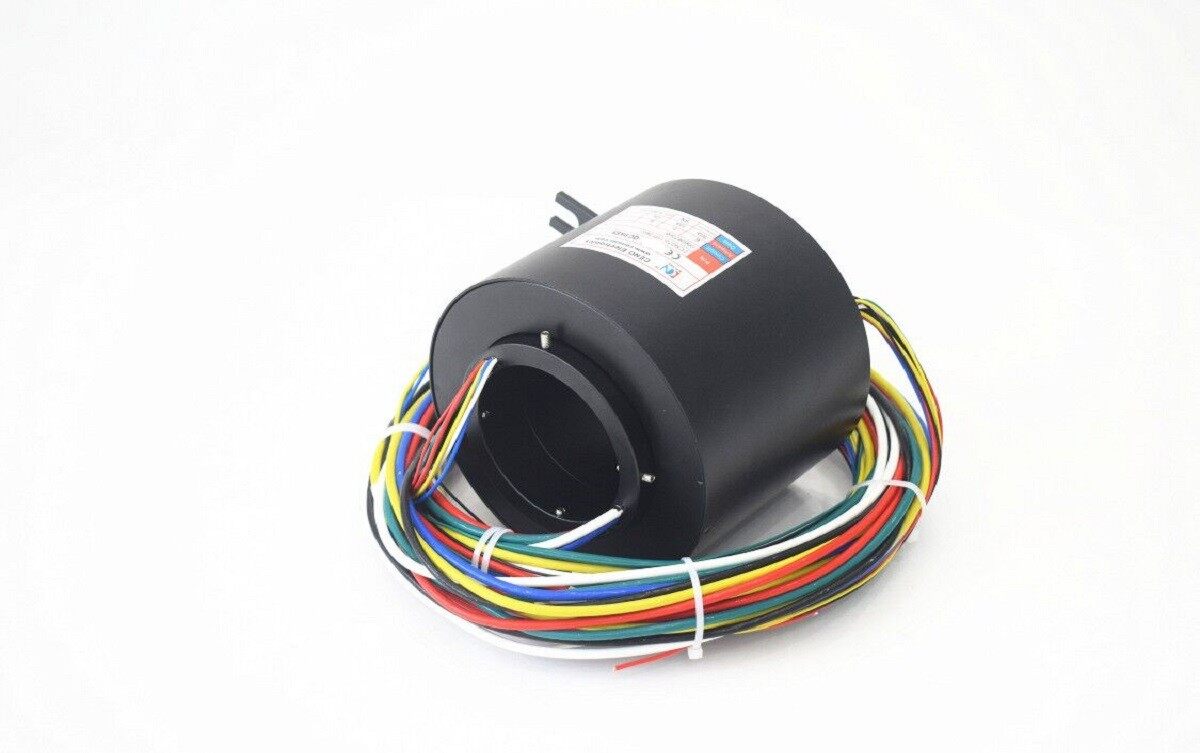

Through Hole Slip Rings

• Circuits: Number6,12,18,24 or more
• Current rating5A,10A,15A
• Inner bore size: 70 mm
• Voltage: 380VAC/VDC
• Electrical noise: 1000 milliohms max
• Operating speed: 0-300 rpm or higher
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Working temperature: -20℃~+60℃

The through hole slip ring transmits the electric and the CC-link signal simultaneously. CENO offers the custom slip ring for different special feature requirements like the anti-shock,high-temperature resistance, water-proof,dust-proof,excellent seal performance etc.With strong customizing capability,professional suggestion,strict product testing,fast and safe delivery.
