Through Hole Slip Rings

• Circuits number: 6,12,18,24 or more
• Current rating: 5A,10A,15A
• Inner bore size: 60 mm
• Voltage: 380VAC/VDC
• Electrical noise: 100 milliohms max
• Operating speed: 0-300 rpm or higher
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Working temperature: -20℃~+60℃

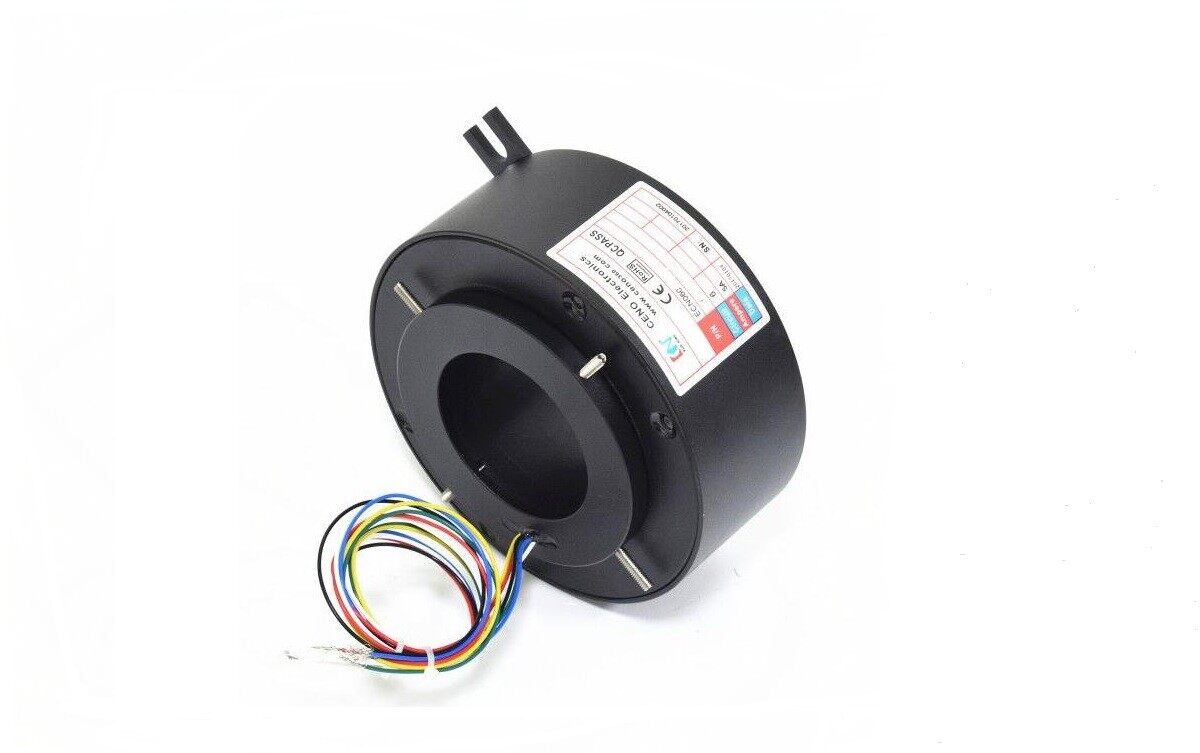

The ECN series electrical through hole slip ring is a rotating assembly used to transfer power & signal, control circuits or data from stationary inlets to rotating outlets.ECN060 series slip rings feature a 60mm inner bore for shaft mounting and incorporate low-wear,fiber brush contacts that do not require lubrication producing virtually no wear debris.Standard models are available from 6 to 24 circuits.CENO could offer different solutions according to your requirements.
