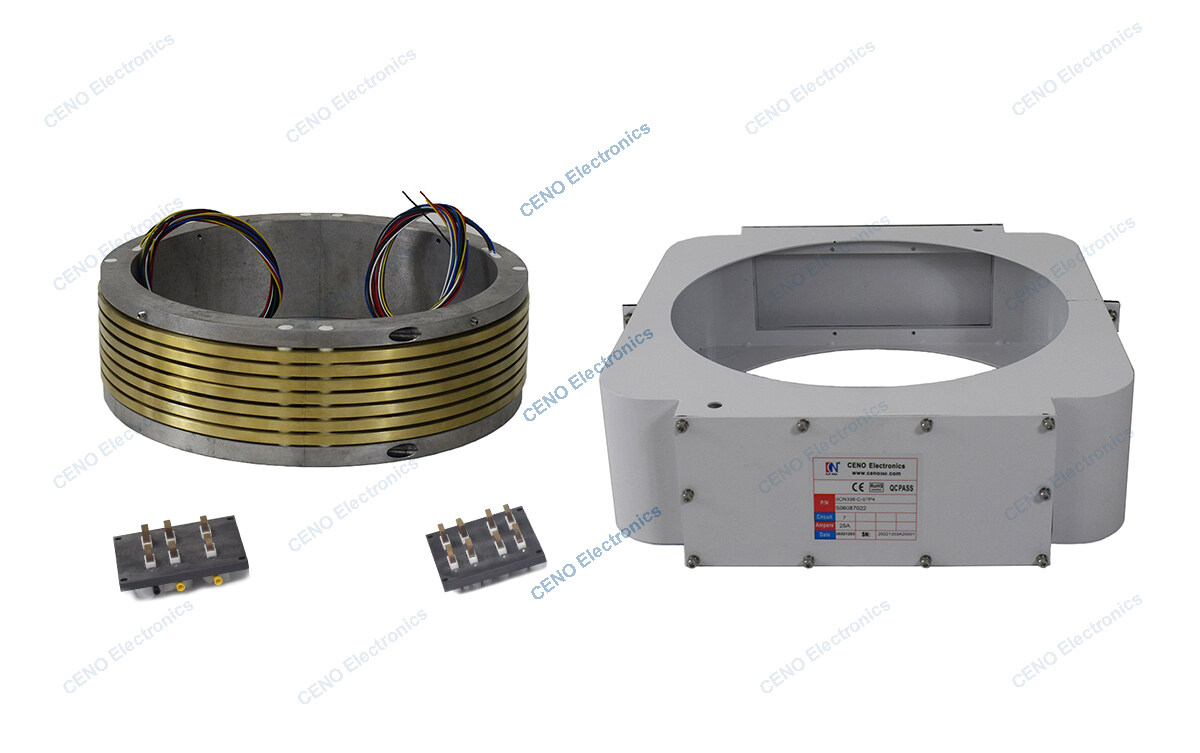

Two Half Style Slip Ring

• Circuits & Current: 7 circuits *25A
• Rating Voltage: 0~12 VAC/VDC
• Dielectric strength: ≥ 300VAC @ 50Hz
• Insulation Resistance: 300MΩ @ 300VDC
• Electrical NoiseMax: 10mΩ (50rpm)
• Lead wire length: Rotor: 1000mm Stator: Terminal for customer connection
• Working speed: 0~1 rpm
• Lead wire size: 3.2mm² wire
• Rotation way: Main shaft drives rotor running, Stator side mounting screw hole
• Contact material: Precious Metal
• Inner diameter: Ø338mm
• Protection: IP00
• Working humidity: 0~95% RH
• Working temperature: -20℃~+60℃

SCN338-C-07P4 is a two half style slip ring for industry application from CENO Electronics, there are 7 circuits for 25A electric power with rating voltage 12VAC/VDC. The features of the two half style slip ring is low torque, low friction, low electrical noise and long service life, especially suitable for all kinds of line precision instruments. Such as medical equipment, aerial camera, aerospace military and machining control system.
