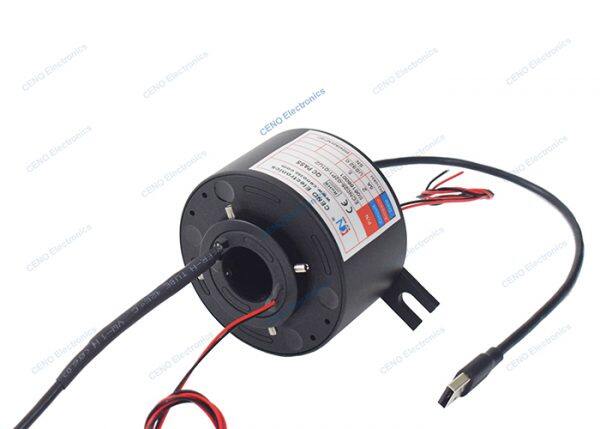

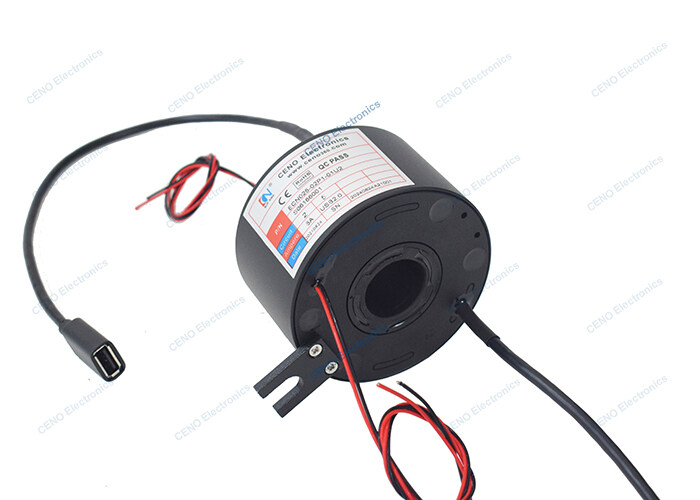

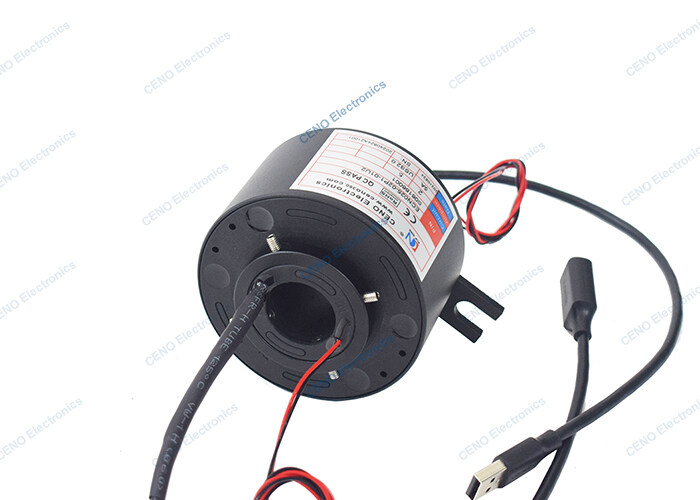

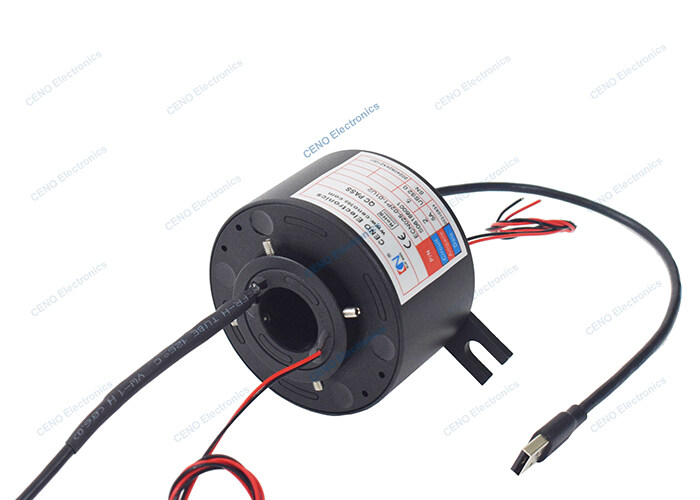

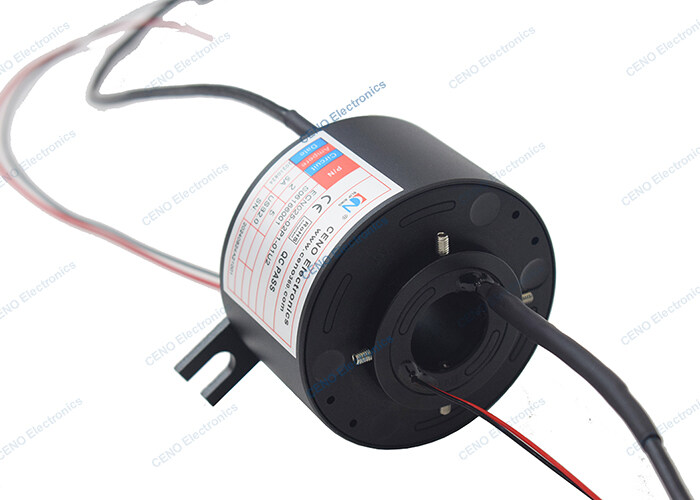

USB 2.0 Signal Slip Ring

• Circuits & Current: 2 circuits * 5A; 1 circuit * USB2.0 Signal
• Rating Voltage: 0~220VAC/VDC
• Dielectric strength: ≥500VAC@50Hz
• Isolation resistance: ≥300MΩ@500VDC
• Electrical Noise: Max 30mΩ (50rpm)
• Working temperature: -20°C~+60°C
• Working humidity: 60%RH
• IP protection grade: IP51
• Working Speed: 0~100 rpm
• Inner Diameter: Ø25mm
• Outer Diameter: Ø119mm
• Contact Material: Precious Metal
• Housing Material: Aluminum alloy
• Lead wire size: AWG22# Wire Teflon® UL; USB2.0 cable
• Lead wire length: Rotor side:300mm wire; USB cable + female type; Stator side: 300mm wire; USB cable + male type
• Installation: Anti-rotation tab installation

ECN025-02P1-01U2 is CENO new customized through bore slip ring which combine 2 circuits electrical power with 1 circuit USB 2.0 signal. USB Signal slip ring is one kind of series products at CENO. We provide reliable USB slip ring products with patented technology. The unique structural design and technical process can prevent external interference and internal crosstalk. USB2.0 signal slip rings are often and widely used in various communication systems. More information please contact us.
