USB Signal Slip Rings

• Circuits & Current: 1 group *USB2.0 signal
• Voltage: 0~24VAC/VDC
• Electrical noise: Max 30mΩ (50rpm)
• Dielectric strength: ≥500V@50Hz
• Insulation resistance: ≥100MΩ@100VDC
• Operating speed: 0-300 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP54
• Through hole size: 20 mm

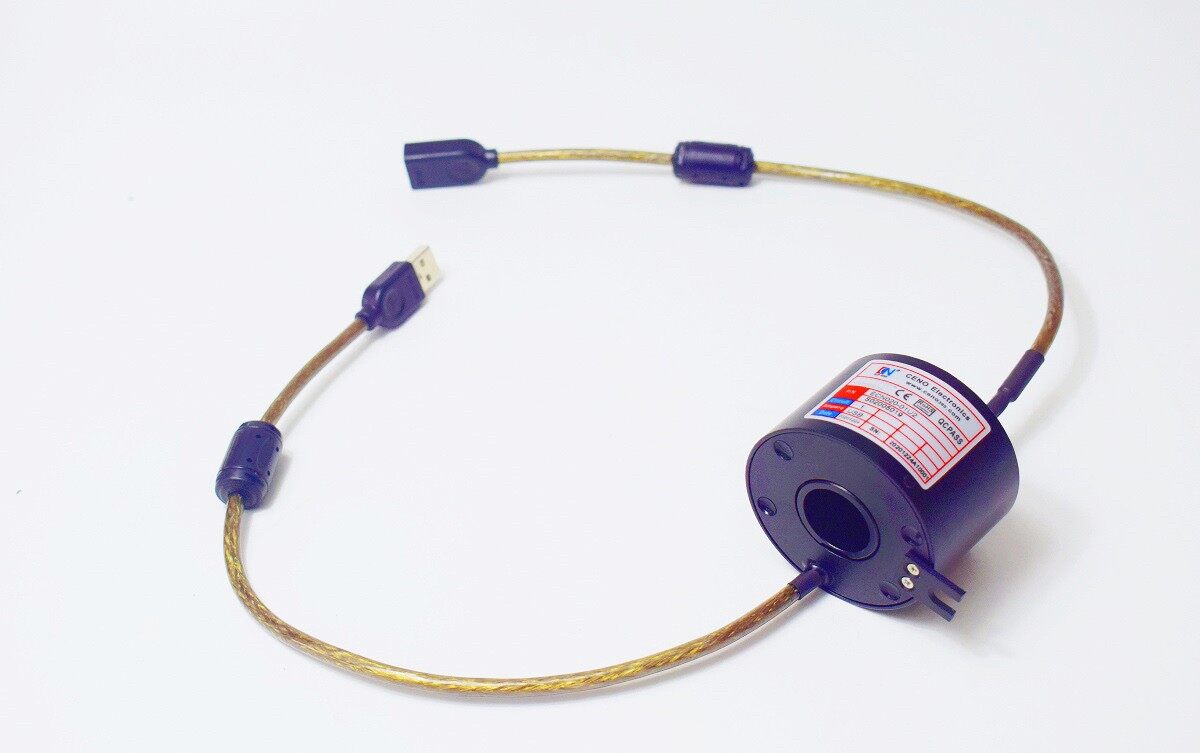

ECN020-01U2 is a high definition signal slip ring with 1 group USB2.0, developed by CENO company, which taking the lead of originality in its area with advanced design idea and manufacturing technology. It is perfectly applied to Video Surveillance field and other signals in 360° continuous rotation. It is of high quality and reliability. Compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life. Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems. We can make customized slip ring to rotating transfer RS485/232/422, CANBUS, Profibus, CC-link, USB3.0, Gigabit Ethernet etc.
