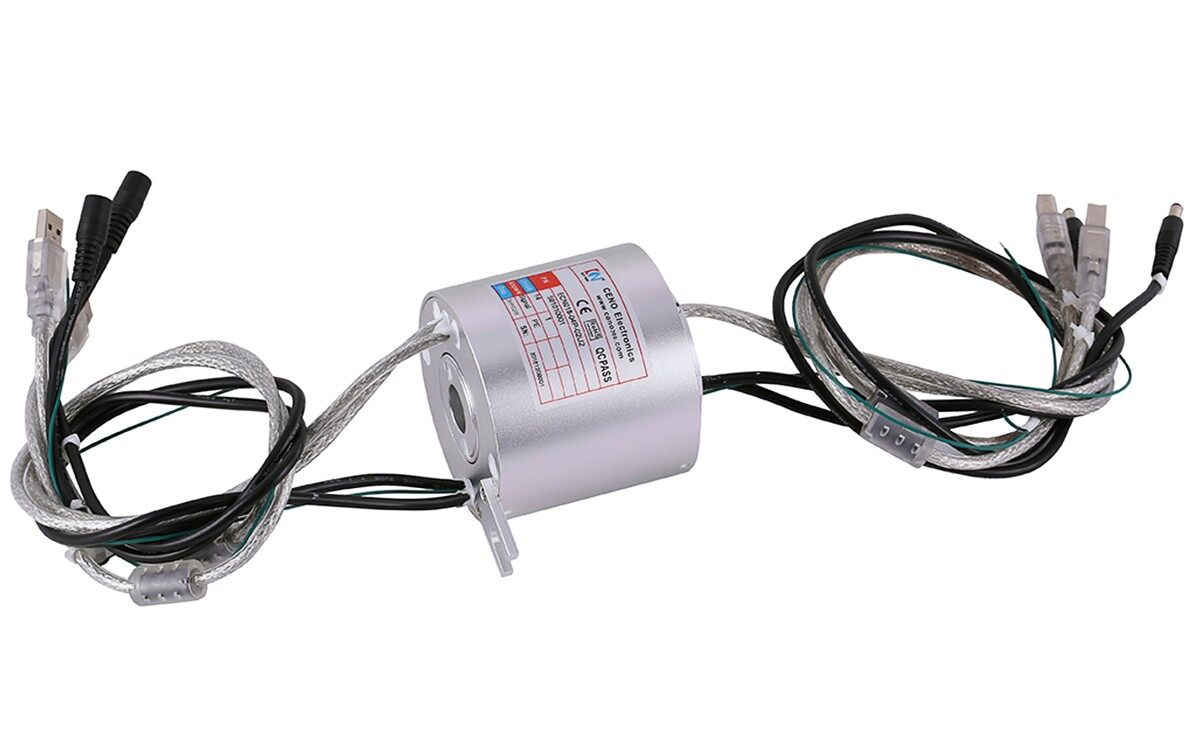

USB2.0 Signal Slip Ring with ID18mm

• Current: 4 *5A;1*earth; 2group USB2.0
• Rating Voltage: 24VAC
• Dielectric strength: ≥1000VAC@50Hz(Power); ≥300VAC@50Hz(Signal)
• Insulation resistance: 500MΩ@500VDC; 100MΩ@300VDC
• Electrical noise: ≤70mΩ ( 50rpm )
• Working Temperature: -20℃~+60℃
• Protection Grade: IP54
• Working speed: 0~300rpm
• Contact material: Precious metal
• Through hole size: Ø18mm

CENO USB slip ring specially designed to transmit USB1.0/USB2.0/USB3.0 signals, it can be applied to any device which needs to transmit conductive power and one or more channel USB signal during 360 degree rotating. With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. Equip amplifying module, like HUB to increase transmission distance, USB female and male connector are available.
