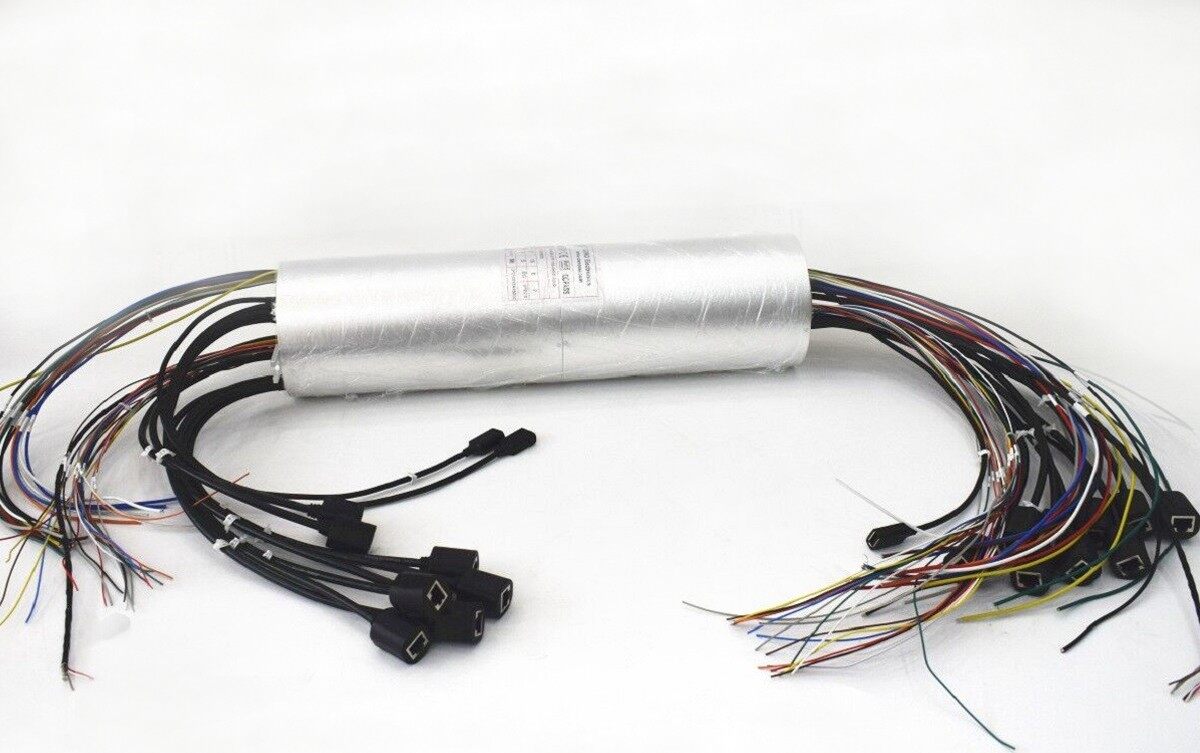

USB2.0 Signal Slip Rings

• Circuits & Current: 16*10A, 3*2A, 2*1A, 6*5A, 11*signal, 1*RS232, 8*1000M Ethernet, 2*USB2.0
• Voltage: 0~220VAC/VDC
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz
• Insulation resistance: ≥500MΩ@500VDC; ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50 rpm)
• Operating speed: 0-300 rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• IP grade: IP54
• Inner hole size: 38.1mm

USB slip ring solve the problem of large capacity data signal transmission between system components rotating connection, and provides the best technical solutions. CENO can integrate various of signals and different current rating in one slip ring. ECN038-27P-15S-08EG-02U2A is one integrate current, RS232, 1000M Ethernet signal, USB2.0. Also can provide such kind of through bore slip ring with inner bore from 3mm to 980mm. USB signal provides convenient interactive port for all kinds of communication equipment, so USB2.0 conductive slip ring has been widely used in all kinds of communication systems. Please contact with CENO if you have any special requirements about slip ring.
