Water-proof Gigabit Ethernet Slip Ring

• Current & Circuits: 10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet
• Rating Voltage: 0~400VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
• Isolation resistance: ≥500MΩ@1000VDC; ≥100MΩ@100VDC
• Electrical noise: ≤30mΩ (50rpm)
• Operating speed: 0~50rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Working temperature: -30°C~+80°C
• Working humidity: 90%
• IP protection grade: IP67

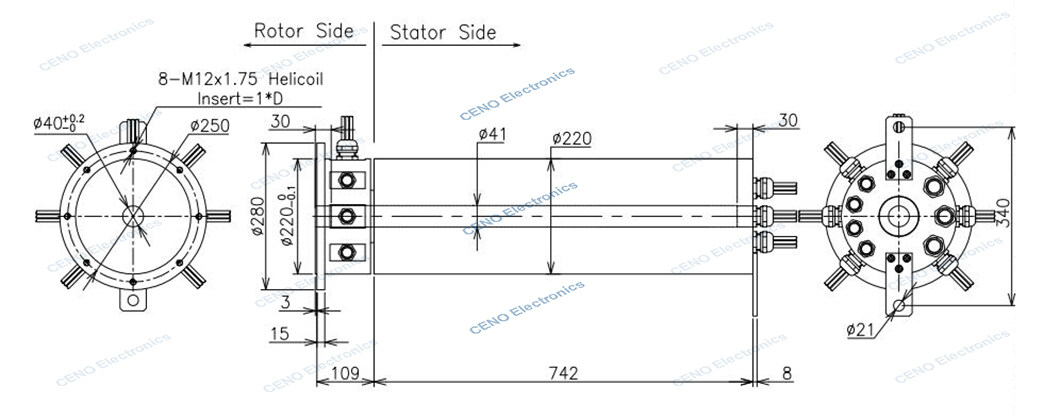

• Through hole size: Ø40mm
• External diameter: Ø220mm
• Lead wire size: 16mm² wire; AWG10#12# Tin coated Teflon®UL; 40*0.3mm² wire
• 4 core Twisted Shield wire; Cat5e net wire;
• Lead wire length: Rotor : 3000mm; Stator : 3000mm
• Installation: Flange installation

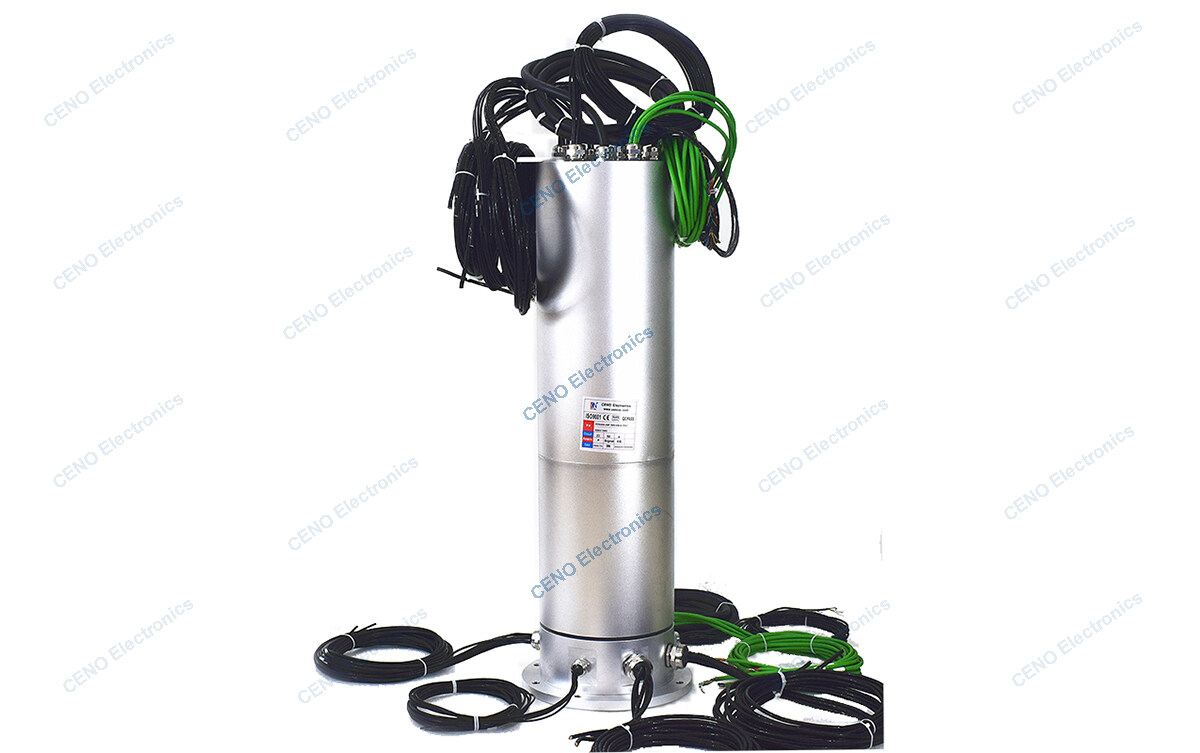

ECN040-22P-58S-04EG-IP67 is a high protection water proof Gigabit Ethernet Slip ring for industry application from CENO Electronics. It’s non-standard slip ring with 10circuits for 70A electric power, 8 circuits for 40A, 4circuits for 25A, 40circuits for 2A, 3circuits for RS422, 4circuits for 1000M Gigabit Ethernet and with IP67 high protection grade even to military standards IP68. Due to it’s high protection and combined large Ethernet signal with various electric power, often apply to the Boats and ship machinery, Port machine, Bear or milk equipment and Communication systems.
