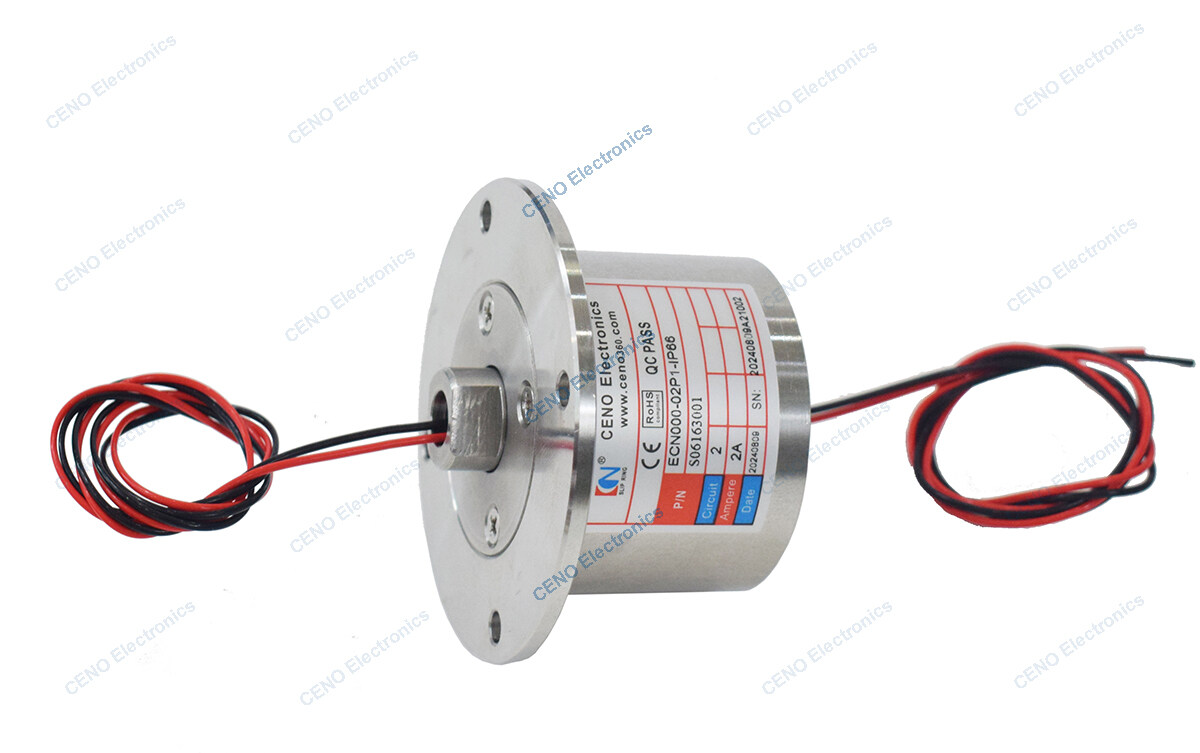

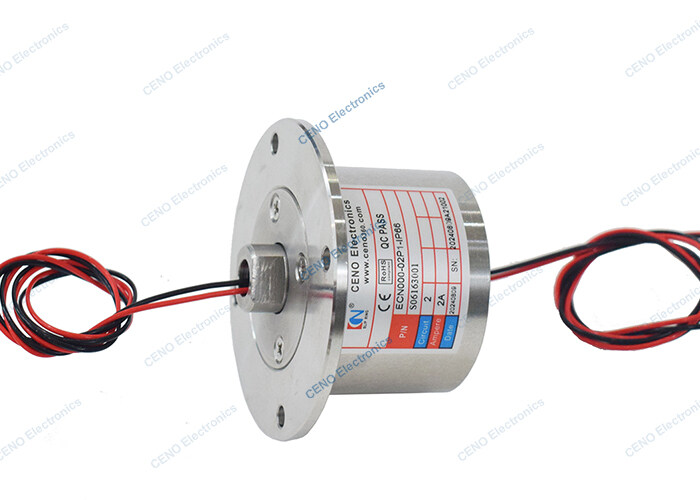

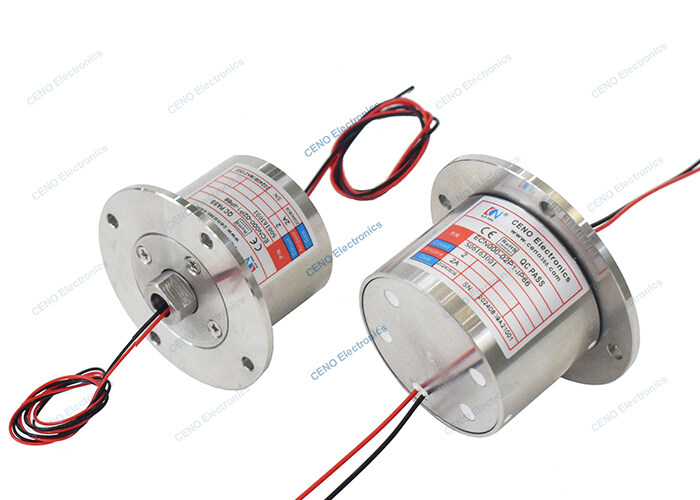

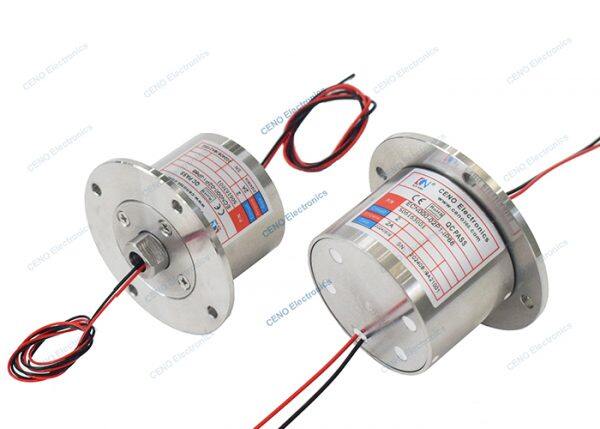

Water-proof Slip Ring

Circuits & Current : 2 circuits electric signal
Rating Voltage : 220VAC/VDC
Dielectric strength : ≥500VAC@50Hz
Isolation resistance : ≥500MΩ@500VDC
Electrical Noise : Max 30mΩ (50rpm)
Working temperature : -20°C~+80°C
Working humidity : 60%RH
IP protection grade : IP66
Working Speed : 0~3 rpm
Outer Diameter : Ø50mm
Contact Material : Precious Metal
Housing Material : Stainless steel
Lead wire size : Customized
Lead wire length : Customized
Installation : Flange installation

ECN000-02P1-IP66 is CENO function slip ring with protection grade IP66 and can be to IP67 IP68 as different customers application. CENO have kinds of function slip ring features high speed, anti-explosion, anti-high/low temperature, multi-channels, large size or integrate signal/data. The water-proof slip ring is designed for the special equipment that works in the environment with high humidity, corrosion or under water. For more information please contact CENO to get special design for your application.
