Water-proof slip ring

• Rings: 6*25A,4*2A,3*5A.2*CAT5e
• Voltage: 0~220VAC/VDC
• Electrical noise: ≤10mΩ(50rpm)
• Dielectric strength: ≥500V@50Hz
• Isolation resistance: ≥500MΩ@500VDC
• Operating speed: 0-12 rpm
• Contact material: Precious metal
• Housing material: Aluminium alloy
• IP protection grade: IP65
• Working temperature: -20°C~+70°C
• Through hole size: 50 mm

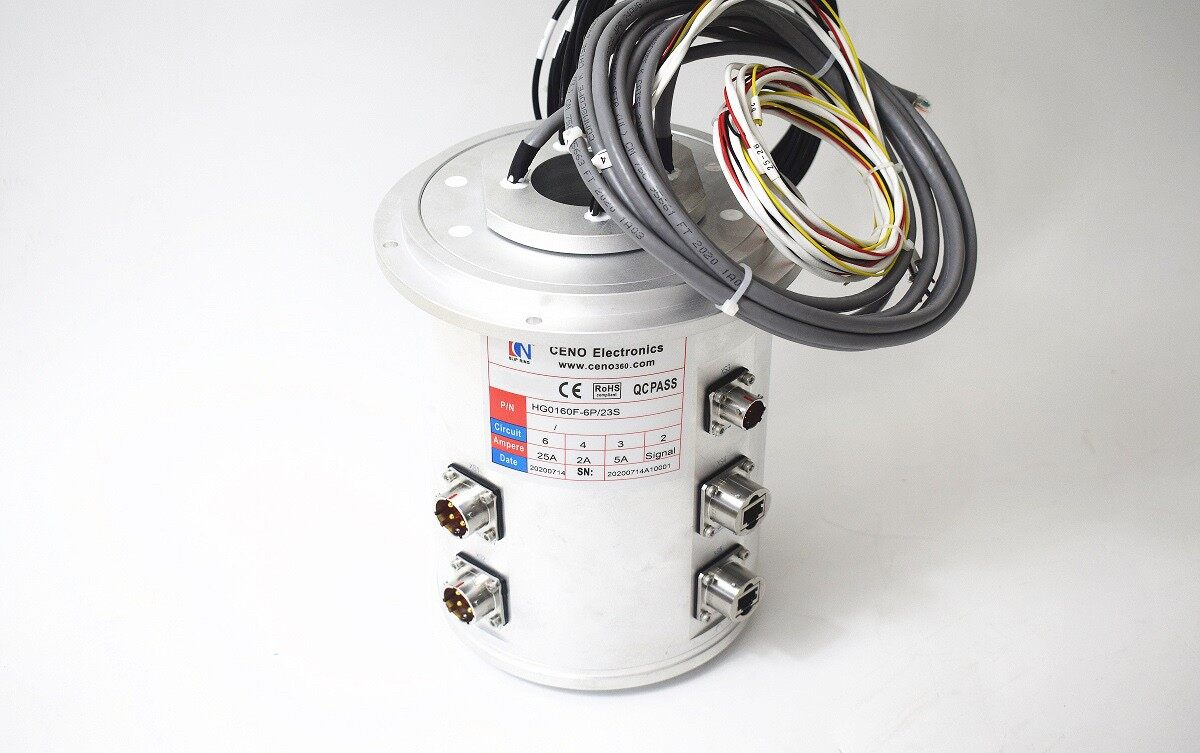

This is waterproof slip ring for rotary table, its outstanding advantage is that IP protection grade IP65, through hole size is 50mm, 6*25A, 4*2A, 3*5A, 2*CAT5e. It can work in special environment of moisture, corrosion and underwater. The waterproof slip ring could be divided into multiple protection grade, such as IP65, IP67, IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water oil etc.
