Water-proof slip ring

• Circuits&Current: 8*15A ,8*signal
• Voltage: 380VAC/DC
• Electrical noise: < 10mΩ (with 50rmb running)
• Dielectric strength: ≥1000V@50Hz
• Isolation resistance: ≥500MΩ@100VDC
• Operating speed: 0-50 rpm
• Contact material: Precious Metal
• Operating temperature: -20~+80℃
• IP protection grade: IP66
• Connector type: RJ45 Male/Female
• Cable size: FLRY-B 2.0m㎡ Multi-core twisted shielding cable

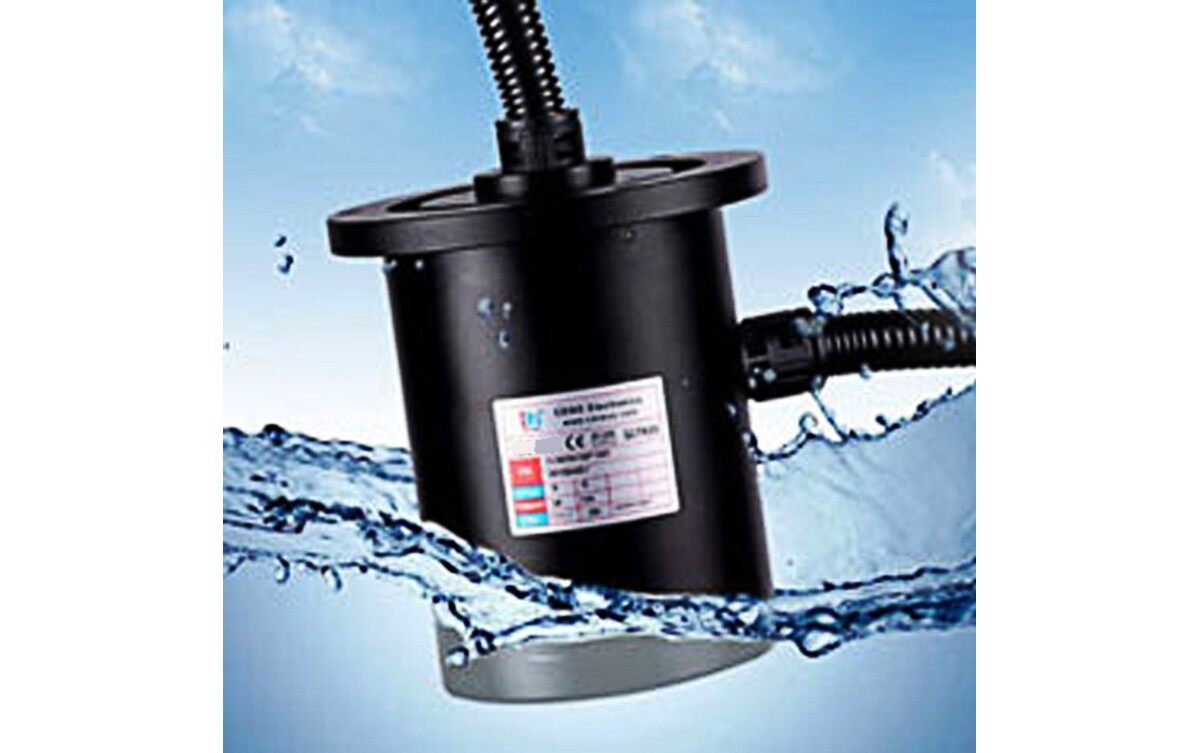

Waterproof slip ring is a kind of slip ring which is used in the special environment of moisture, corrosion and underwater. According to working environment, the waterproof slip ring could be divided into multiple protection grade, such as IP65, IP67, IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water and oil.
