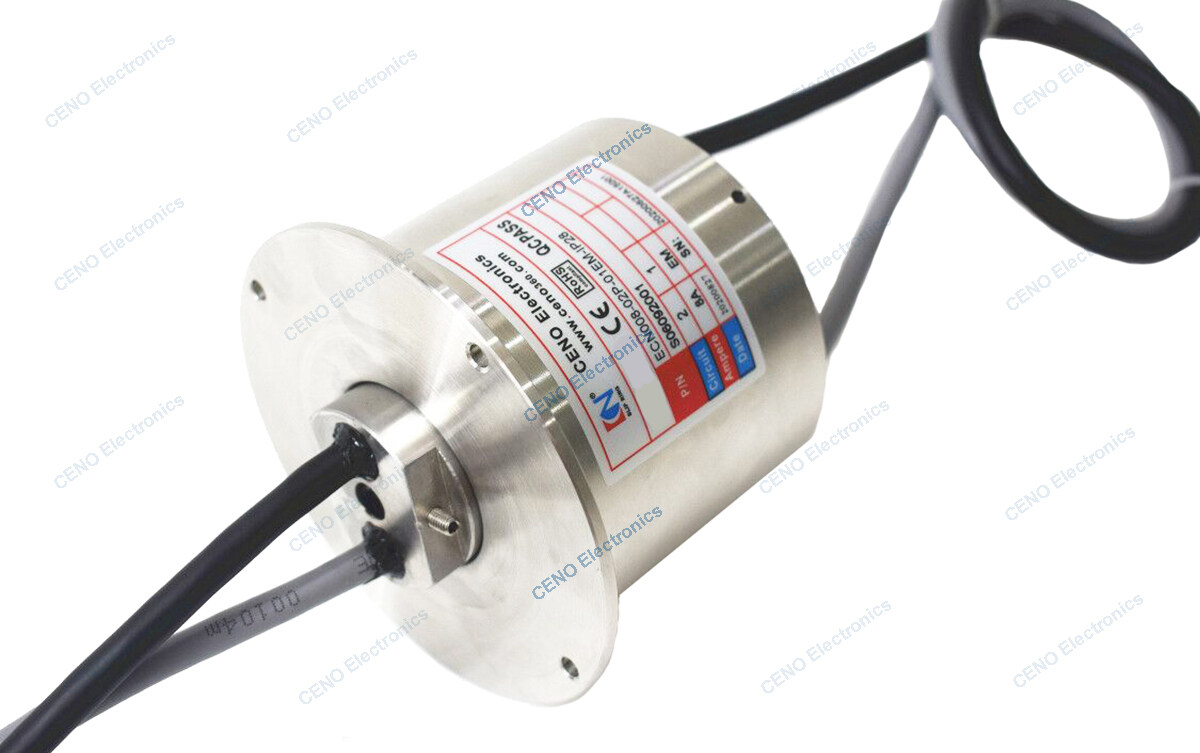

Water-proof slip ring

• Rings: 2*8A,1*100M Ethernet
• Voltage: 0~220VAC/VDC
• Electrical noise: ≤30mΩ(50rpm)/
• Dielectric strength: ≥1000V@50Hz; ≥300V@50Hz/
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC/
• Operating speed: 0-50 rpm/
• Contact material: Precious metal/
• Housing material: Stainless steel 316/
• IP protection grade: IP68/
• Through hole size: 8mm

It’s a waterproof slip ring with protection grade IP68, combine with 100M Ethernet and 2 rings power. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water, oil etc. CENO’s water-proof slip ring is designed for ships, harbor equipment, test equipment and some application which has water or moisture environment.
