Water-proof slip ring

Circuits & Current: 3*85A
Voltage: 1100VAC
Electrical noise: 70mΩ
Dielectric strength: ≥2000V@50Hz
Isolation resistance: ≥500MΩ@100VDC
Operating speed: 0-50 rpm
Contact material: Precious metals
Operating temperature: -40~+80℃
Housing material: Stainless steel 316
IP protection grade: IP68

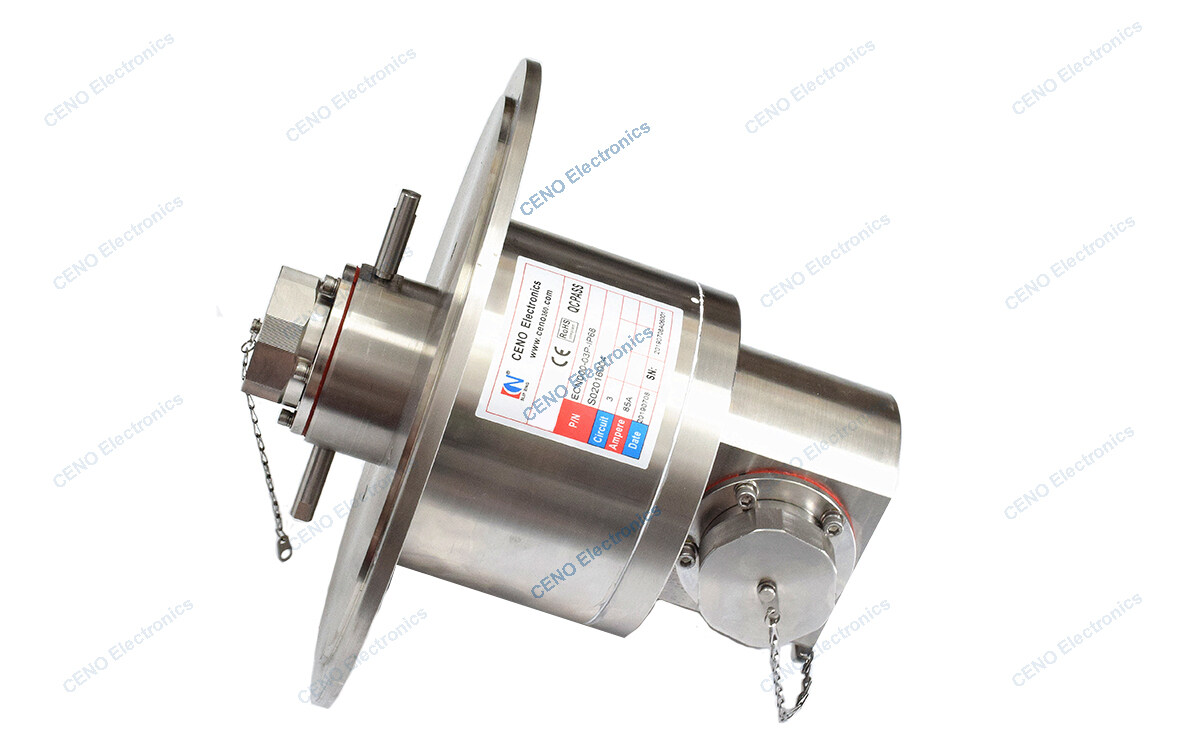

This is waterproof slip ring for marine drilling platform. IP protection grade is IP68, it can work under water 300 meters. It has two waterproof plug and it is equipped with metal dust cover. Housing material is stainless steel 316. The waterproof slip ring is specially developed for underwater and various harsh environment, it can work under water up to 1000m and load -bearing, high temperature resistance, anti-corrosion, the protection grade IP65-IP68 is optional.
