- Current & Circuits: 2 circuits*50A; 4circuits*32A; 4circuits * 25A; 9 circuits * 16A; 2 Groups * 100M Ethernet
- Rating Voltage: 0~400VAC / VDC
- Dielectric strength: ≥1200VAC@50Hz; ≥300VAC@50Hz
- Isolation resistance: ≥500MΩ@500VDC; ≥300MΩ@300VDC
- Electrical Noise: ≤ 30mΩ (50rpm)
- IP Grade: IP67
- Working humidity: ≤ 60%
- Working temperature: -20℃ ~ +80℃
- Inner diameter: Ø160mm
- Operating speed: 0~50 rpm
- Working Torque: ≤ 30N*m
- Contact material :Precious Metal / Gold to gold
- Housing material : Aluminum Alloy + Stainless steel
- Lead wire size : Shielded wire; CAT5e
- Lead wire length: Rotor side: 5000mm; Stator side: 5000mm
- Rotation Way: Fix up stator side with anti-rotation side shaft drives rotor running

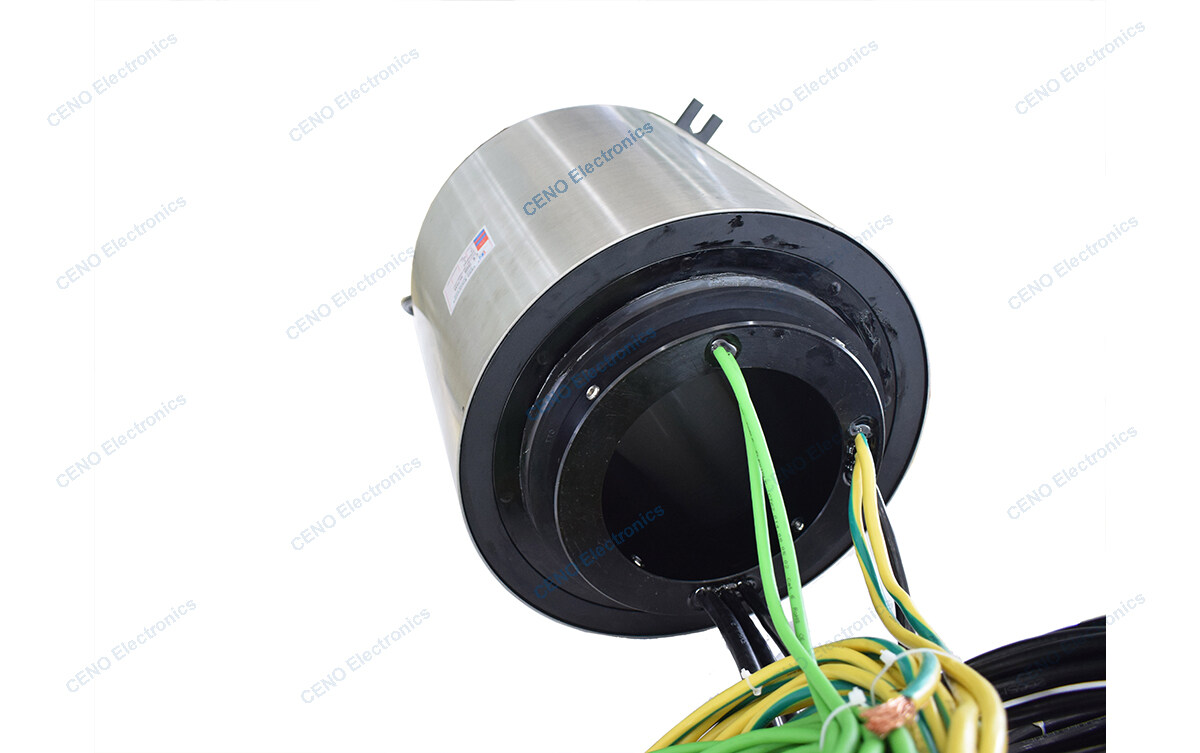

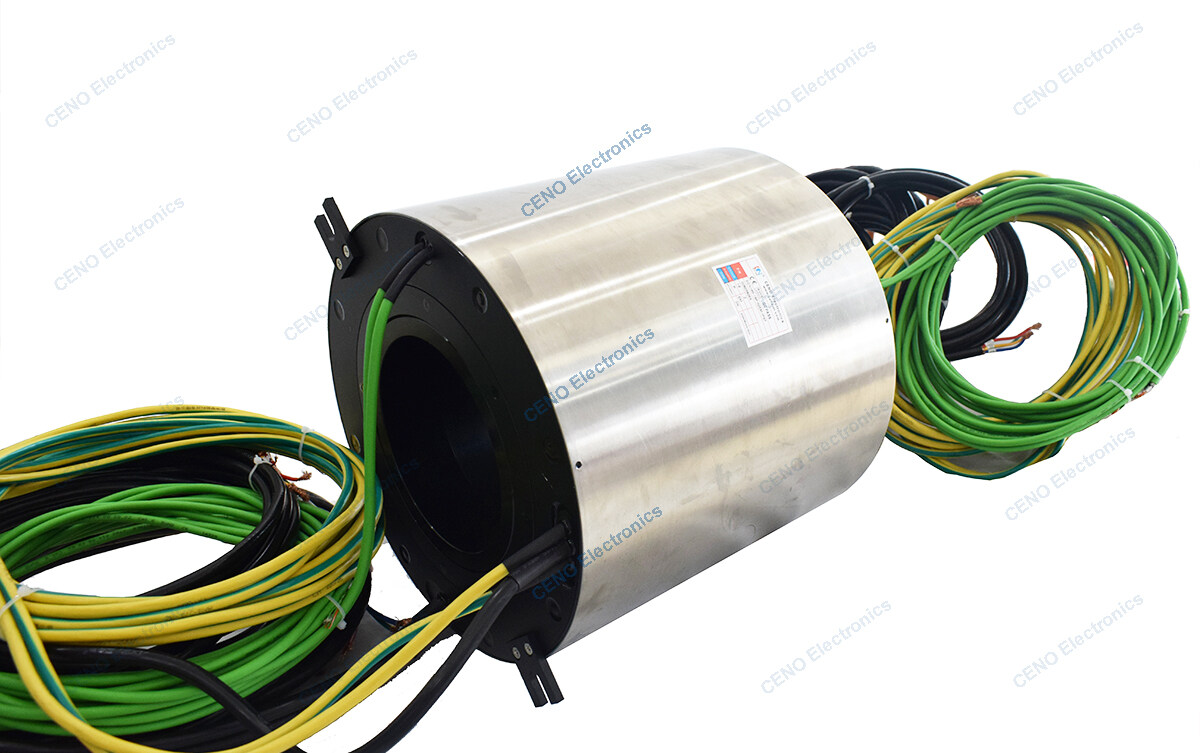

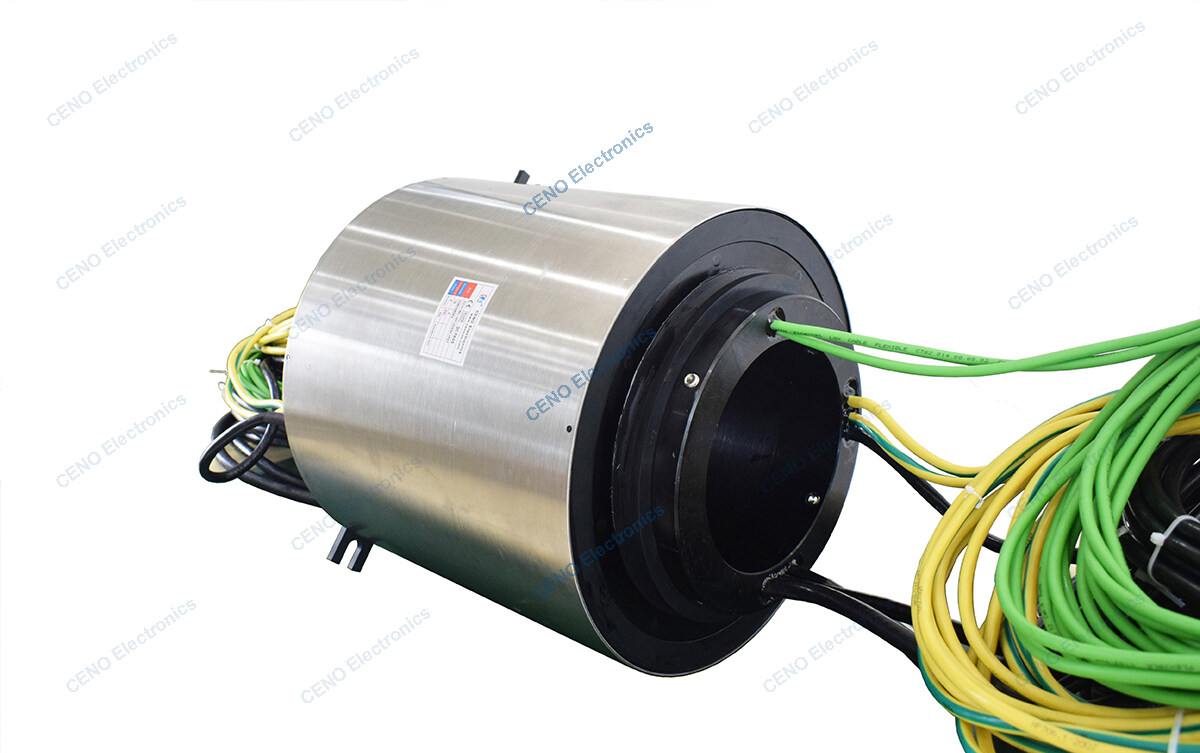

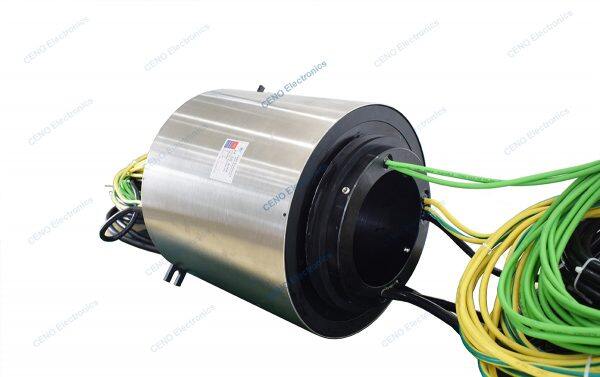

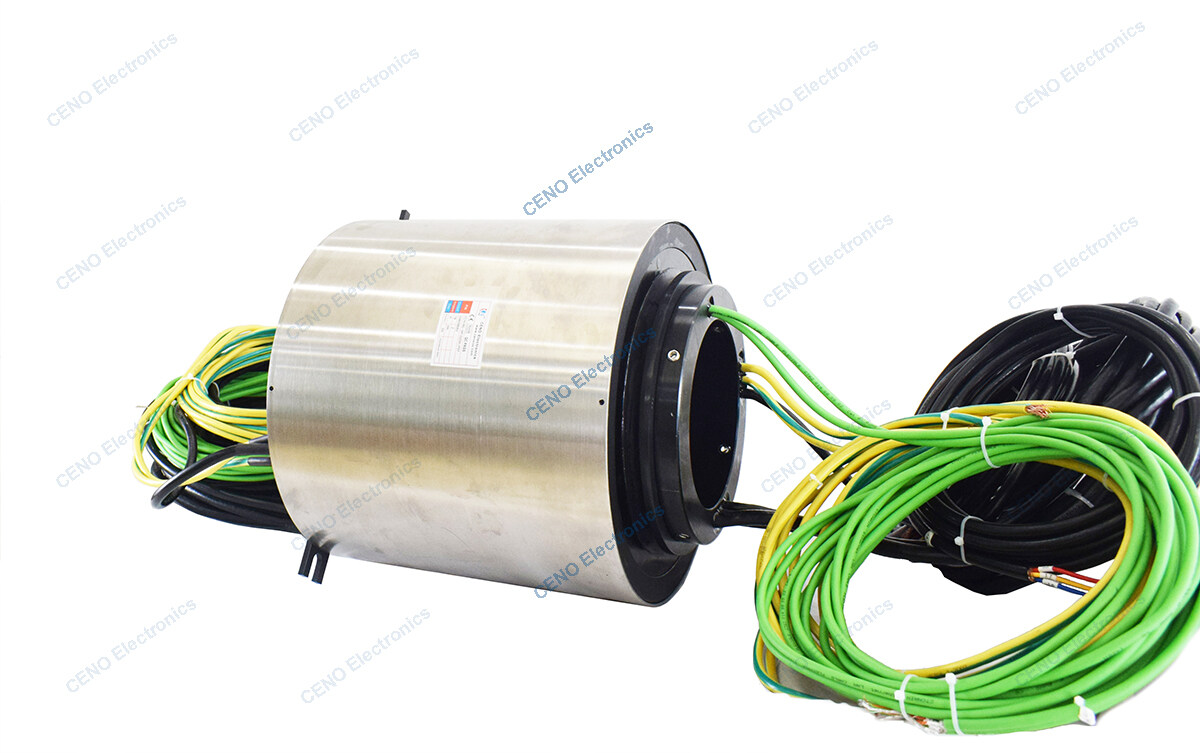

ECN160-19P-02EM-IP67 is CENO Waterproof slip ring for Boats and Ship Machinery. Waterproof slip ring, also known as waterproof conductive slip ring, is a specially designed rotary connector. The principle of waterproof slip ring involves its internal structure and design, which enables it to stably transmit power, signals, data and other information such as optical fiber and radio frequency in harsh environments such as moisture, corrosion and underwater. For more information please contact us
Features
- Protection grade can be to IP68 for special application & machine
- Through hole design and combine Ethernet signals
- Integrated structure easy install
Applications
- Automatic machine
- Boats & Ship Machinery
- Offshore equipment
- Filling machinery
- Medical equipment
Optional
- Circuits, Voltage, Current
- Integrate Signals and data
- Contact / Housing Materials
- IP Grade
- Speed
