- Current & Circuits: 1 circuit * PE; 7 circuits * 32A;6 circuits * 25A; 5 circuits * 10A; 4 circuits * 16A; 12 circuits * 6A; 2 circuits * 100M Ethernet
- Rating Voltage : 0 ~ 48VAC / VDC
- Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
- Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
- Electrical Noise: ≤30mΩ (50rpm)
- IP Grade: IP67
- Working humidity: ≤ 60%
- Working temperature: -20℃ ~ +60℃
- Inner diameter: Ø50mm
- Outer diameter: Ø180mm
- Operating speed: 0~100 rpm
- Working Torque: ≤3N*m
- Contact material: Precious Metal / Gold to Gold
- Housing material: Aluminum Alloy + Stainless steel
- Lead wire size: Lead wires; Shielded wires; CAT5e
- Lead wire length: Rotor side: 12000mm; Stator side: 12000mm
- Rotation Way: Fix up stator side with anti-rotation side shaft drives rotor running

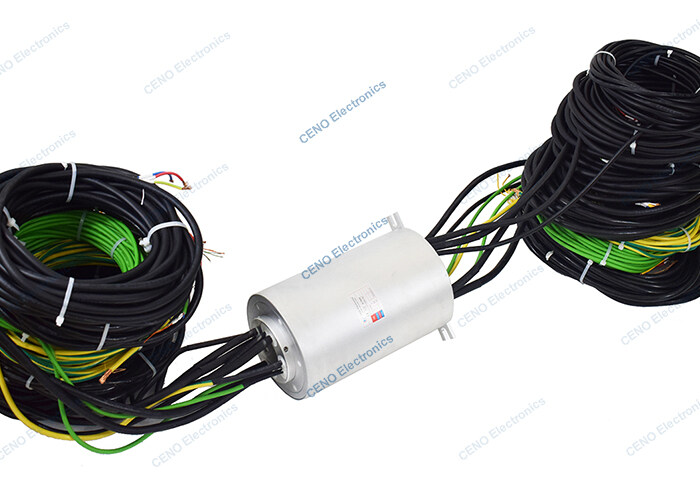

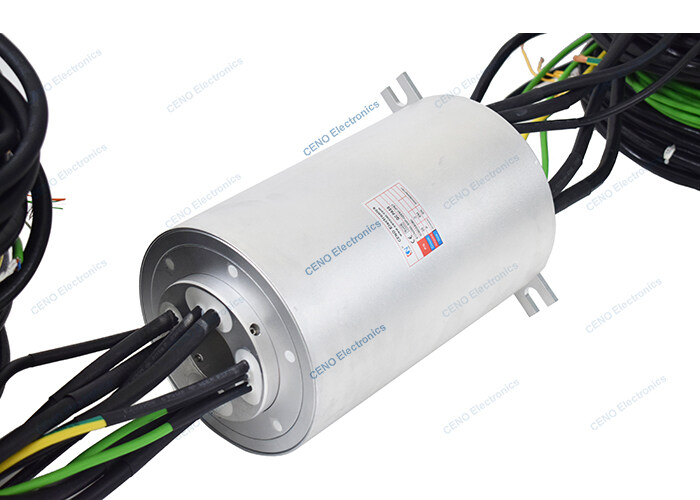

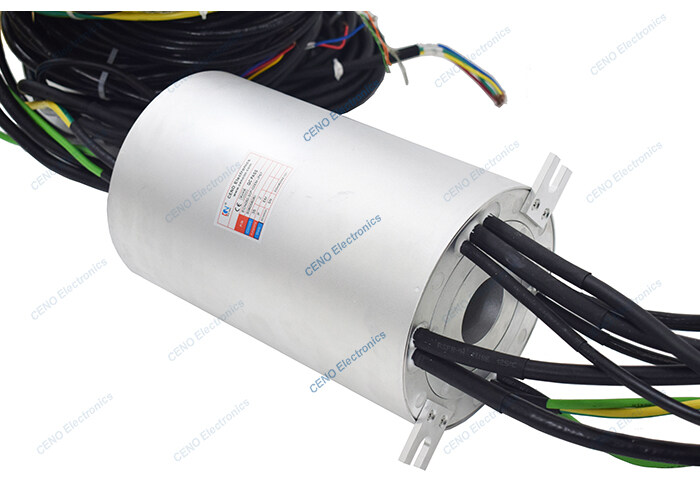

ECN050-35P-02EM-IP67 is CENO new Water-proof slip ring with IP67 and ID50mm which is designed for the Port Machinery. Water-proof slip ring adopt advanced materials to get stable performance in high humidity or under water environment, with features of ageing resistance and anti-corrosion. More and more slip rings are used in special high-temperature or low-temperature electromechanical equipment. For more information about CENO slip ring please contact us.
Features
- Through bore 3-980mm optional
- Integrate electric and Ethernet, signal and data signal is optional
- IP67 advance material with anti-corrosion, ageing resistance.
Applications
- Packing robot
- Centrifugal testing machine
- Separator machine
- Port machinery
- Amusement equipment
Optional
- Inner / outer diameter
- Circuit, Voltage, Current
- Contact / Housing Materials
- IP Grade & Speed
- Working temperature
