- Current & Circuits: 1 circuit * PE; 6 circuits * 25A; 4 circuits * 16A; 2 * 100M Ethernet
- Rating Voltage: 0 ~ 48VAC / VDC
- Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
- Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
- Electrical Noise: ≤30mΩ (50rpm)
- IP Grade: IP67
- Working humidity: ≤ 60%
- Working temperature: -20℃ ~ +60℃
- Inner diameter: Ø50mm
- Operating speed: 0~100 rpm
- Working Torque: ≤3N*m
- Contact material: Precious Metal / Gold to Gold
- Housing material: Aluminum Alloy + Stainless steel
- Lead wire size: Lead wires; Shielded wires; CAT5e
- Lead wire length: Rotor side: 5000mm; Stator side: 12000mm
- Rotation Way: Fix up stator side with anti-rotation side shaft drives rotor running

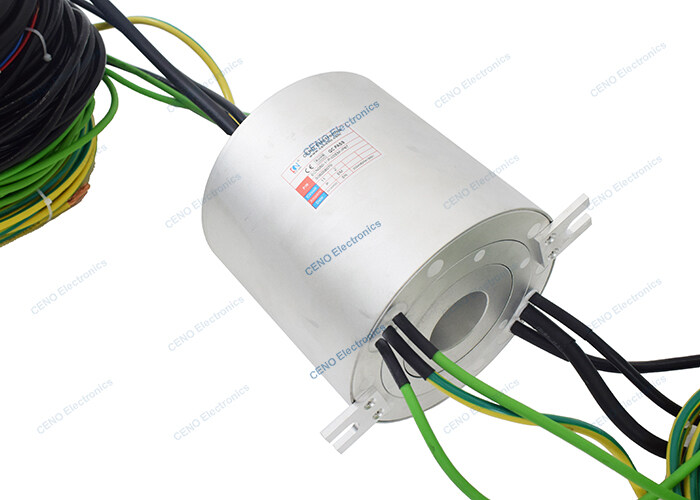

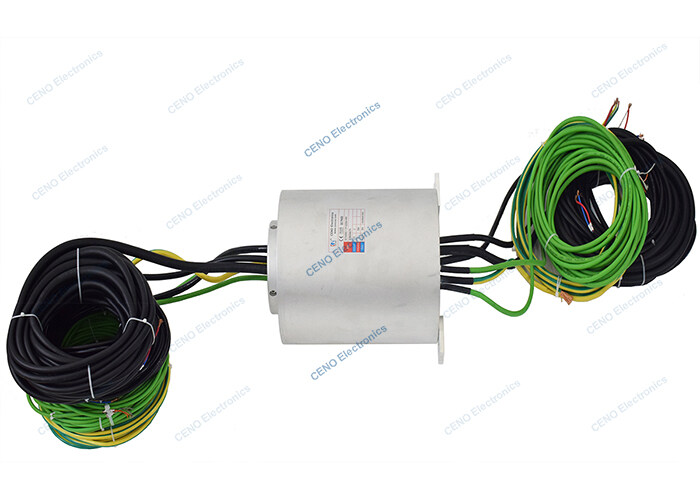

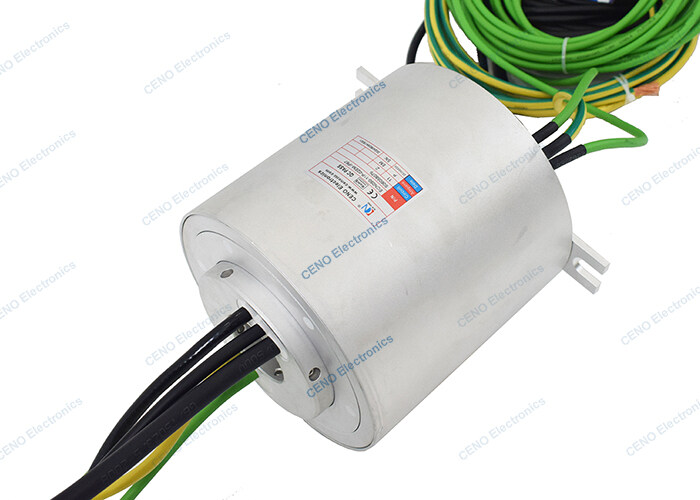

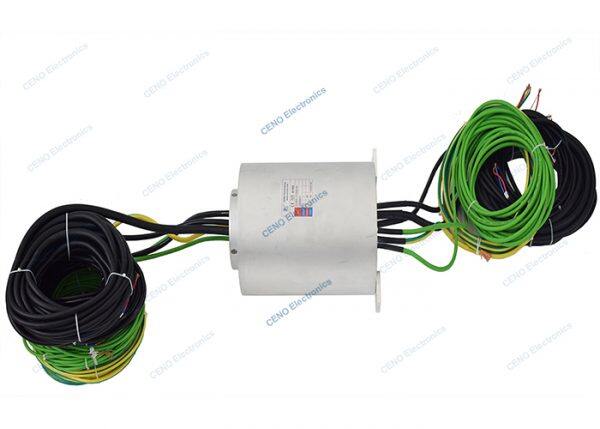

ECN050-11P-02EM-IP67 is CENO new water proof slip ring with circuits electric power and 2 group * 100M Ethernet. As we know that the main function of waterproof slip ring is not only to transmit power and signal, but also to be waterproof. Therefore, its structure is more complex and the production technology is more demanding. CENO adopt advanced materials to ensure that water proof slip ring have long service life and easy installation. More information please contact us.
Features
- IP Grade IP51-IP68 is optional
- Multi-point contact design and anti-corrosion housing material
- Integrate Ethernet signal & other signal data is optional as request
Applications
- Packing equipment
- Testing mechanic
- Industry robot
- Filling machinery
- Offshore equipment
Optional
- IP Grade
- Circuits, current and signals
- Materials & lead wires
- Working temperature
- Working speed
