Waterproof Slip Ring

• Current & Circuits: 3 circuits*16A; 14 circuits*6A
• Rating Voltage: 0 ~ 24VAC / VDC
• Dielectric strength: ≥300VAC@50Hz
• Isolation resistance: ≥100MΩ@300VDC
• Electrical Noise: ≤30mΩ (50rpm)
• IP Grade: IP67
• Working humidity: ≤ 60%
• Working temperature: -20℃ ~ +80℃

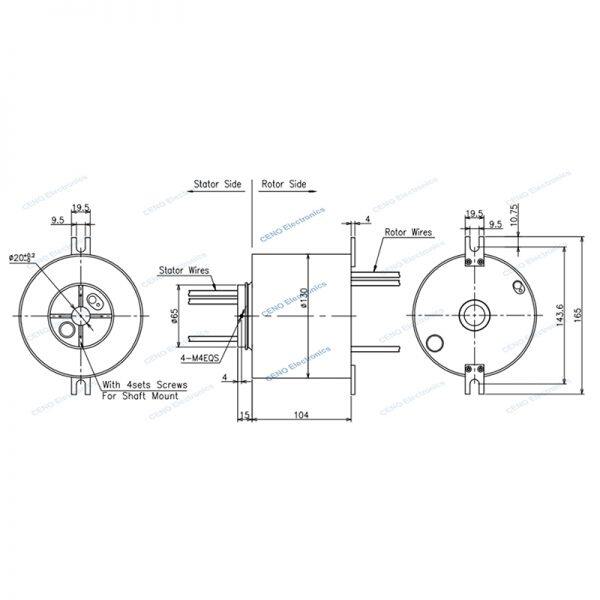

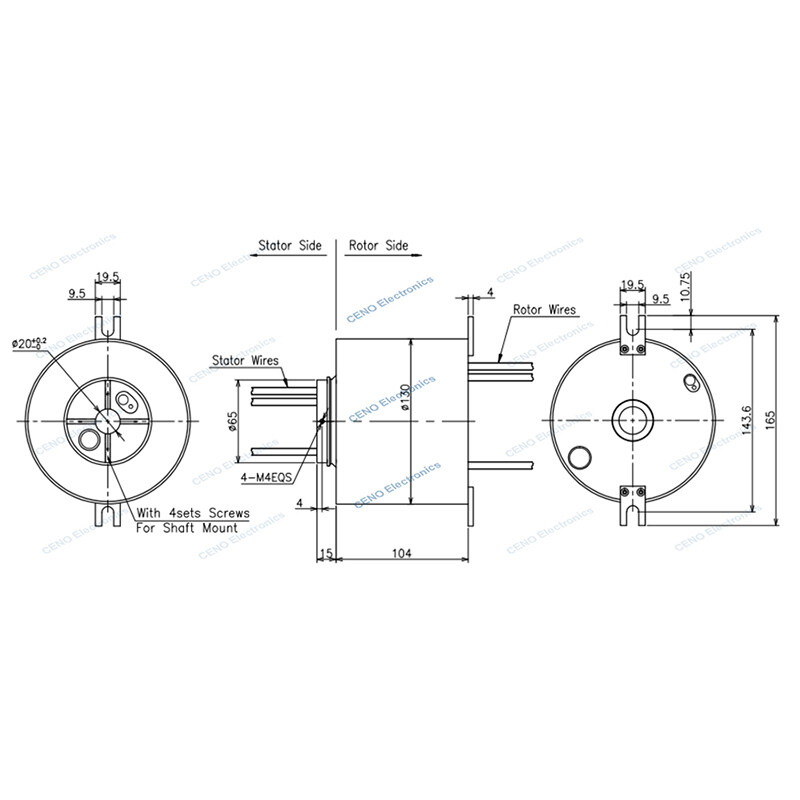

• Inner diameter: Ø20mm
• Operating speed: 0~50 rpm
• Working Torque: ≤ 5N*m
• Contact material: Precious Metal
• Housing material: Aluminum Alloy
• Lead wire length: Rotor side: 5000mm; Stator side: 5000mm

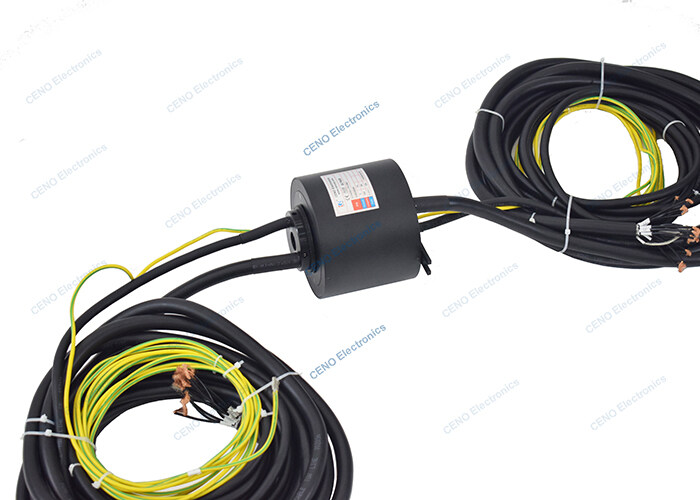

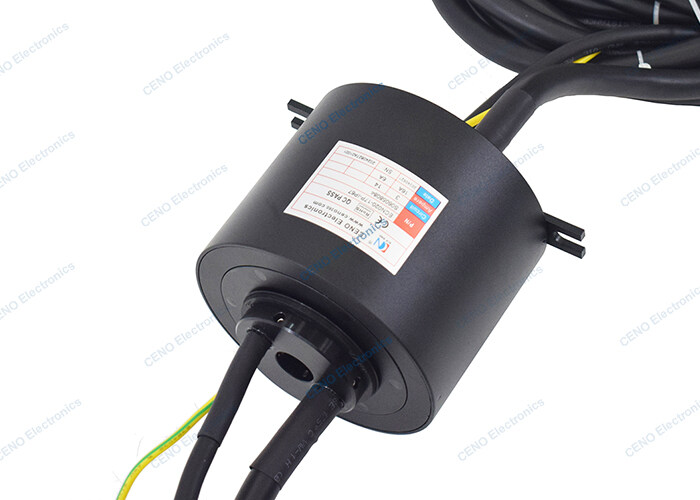

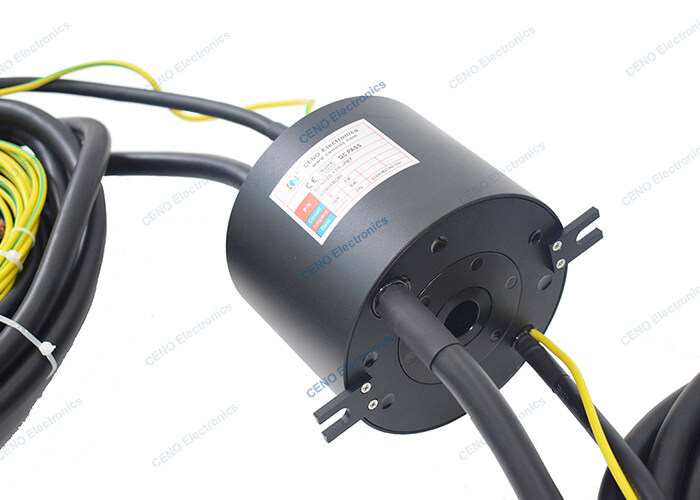

ECN020-17P-IP67 is CENO water proof slip ring with IP67 which combine 3 circuits 16A with 14 circuits 6A for test equipment. The design of the waterproof slip ring mainly takes into account the internal strong and weak current isolation and special shielding modules. It’s suitable for application scenarios where require simultaneous transmission of power and micro-electric control signals, such as the industrial equipment, rotation table, Robot series machinery, exhibition or Medical equipment etc., For more information please contact us.
